WGS1-080-030-050-R-ACS - Datasheet
MBA
Category Information

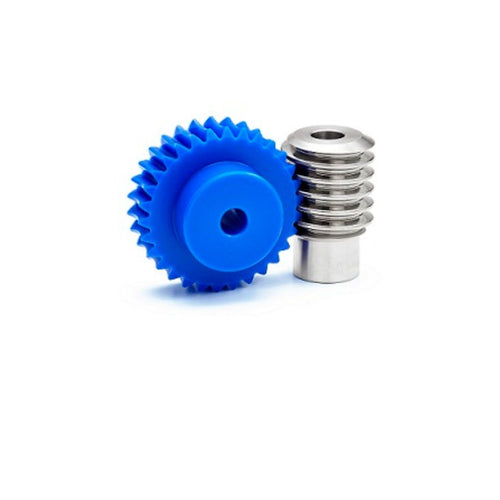

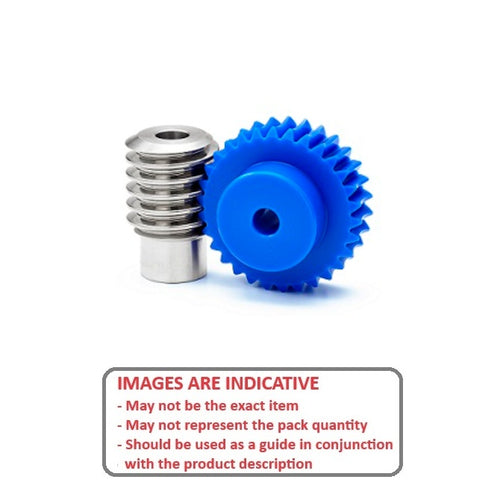

Gears - Worm Sets - Module 0.8Module 0.8 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch : Module 0.8
- Teeth 30
- Bores (Gear / Worm) 5.00 / 5.00 mm
- Direction Right Hand
- Ratio 30 to 1
- Lead Angle 1 Deg
- Face Width (b) 6.00 mm
- Hub Diameter 18.00 mm
- Centre Distance (A) 18.25 mm
- Gear Length (l) 12 mm
- Hub Projection (lh) 6 mm
- Gear Pitch Diameter (da) 24.00 mm
- Material Polyacetal Gear and Steel Worm
