CP-110-110-30-030-H-P1 - Datasheet

MBA

Category Information

Couplings - Helical - Standard

Standard Helical Couplings. 0.1 to 16.2 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Zero backlash.
  • Max. Ang Misalignment 5 Degree
  • Max Parallel Offset 0.25mm.

Product Data

  • Bore (B1) : 11.000 mm
    (Equiv. 0.433 in.)
  • Bore (B2) 11.000 mm
    (Equiv. 0.433 in.)
  • OD (D) / Clearance Dia (H) 30.000 mm
    (Equiv. 1.181 in.)
  • Length (L) 30.000 mm
  • Max. Momentary Dyn. Torque 4.15 N.m
  • Hub Config/Hub Diameter Set Screw / 30.0 mm
  • Torsional Flexibility 34.8 Arc.Min / N.m
  • Material Stainless Steel 17-4 PH
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • S50HWWM30P1111
    View full details

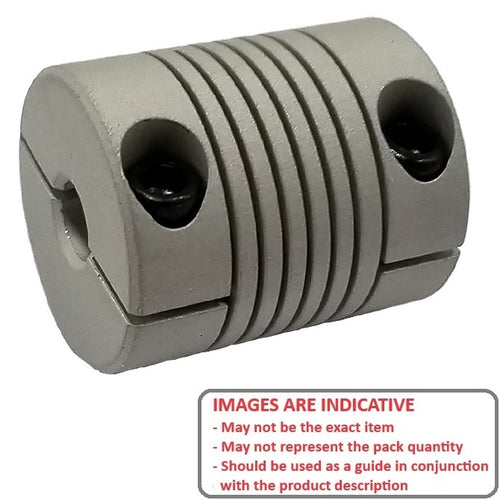

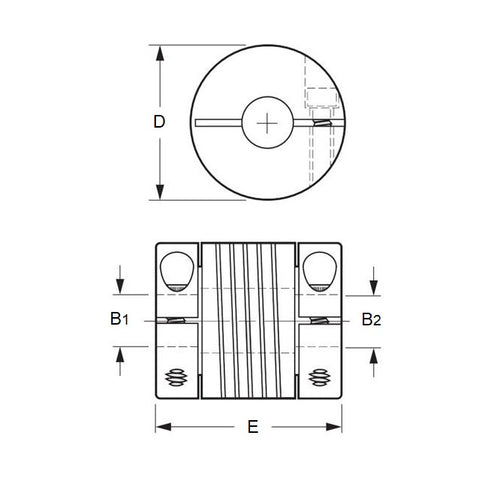

    CP-110-110-30-030-H-P1DiagramCP-110-110-30-030-H-P1Image
