SMR15875-08-ZZ-MC3-KC - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

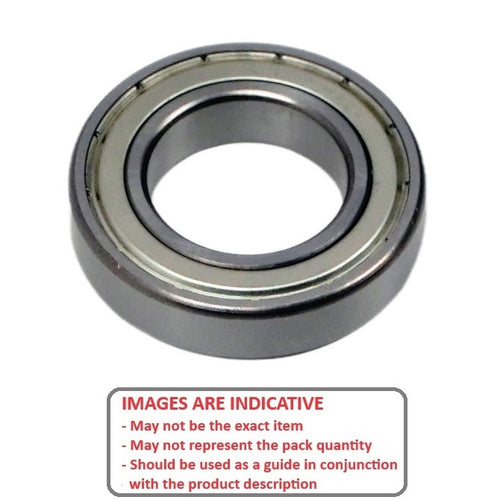

Double shielded precision stainless steel bearing with high speed polyamide retainer

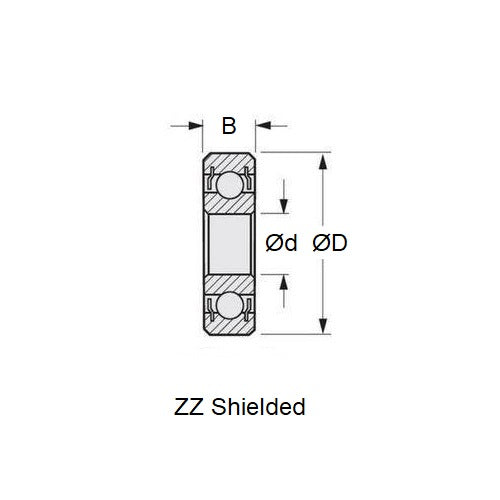

- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - O.D. (D)
15.875
mm
+ 0.000 / - 0.0075
(Equiv. 0.625 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.125
(Equiv. 0.236 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR15.875-8
- Limiting Speed 24293
- Cage Type Standard
- Static Load Rating KGf 60
- Dynamic Load Rating KGf 128
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- Schick® - C3 - Bearing for Shaft 8x15.875x6
Cross References
- SMR1587508ZZMC3
- MR15.875-8 Basic Size Ref
