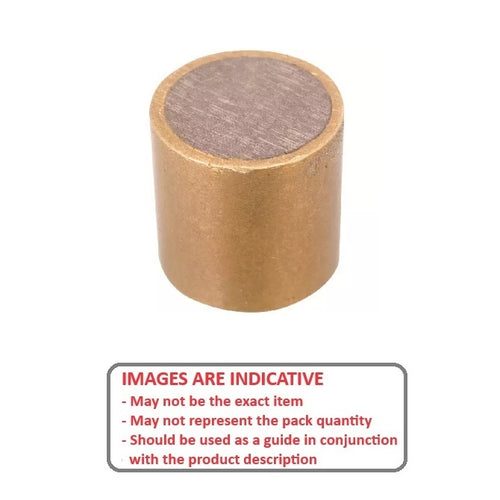

MAG-S-10-019-AN - Datasheet
MBA
Category Information
Magnets - Shielded AlnicoShielded Alnico Magnets. This is the main category in this series
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

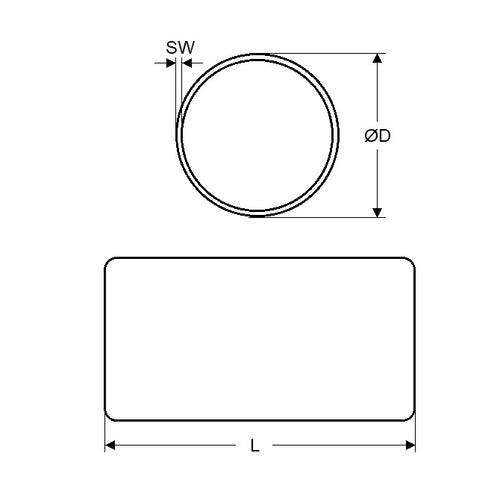

- Diameter (A)
:
9.52
mm
(Equiv. 0.375 in.) - Length (B)
19.05
mm
(Equiv. 0.75 in.) - Sidewall Thickness
0.81
mm
(Equiv. 0.032 in.) - Max Pull 0.18 kg
Product Compliance and Data
Additional Resources
Cross References
- IM53
- IM-53
