S608-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

Double shielded standard stainless steel bearing

ID (d) : 8.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.315 in.)
O.D. (D) 22.000 mm _{+ 0.000 / - 0.010}
(Equiv. 0.866 in.)
Width (B) 7.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.276 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name SRL Multemp
Basic Part 608
Limiting Speed 34000
Cage Type Ribbon
Static Load Rating KGf 141
Dynamic Load Rating KGf 336
Radii 0.30 mm
Inner Shoulder (UI) 10.50mm
Outer Shoulder (UO) 19.03 mm
Number of Balls 7
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 150 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
CMB - 20 All Models - Bearing
Como® - 40 All Models - Bearing
Como® - 51 All Models - Bearing
Enya® - 4C - 45 - Bearing
Enya® - 4CII - 120 - Bearing
HB - 50 All Models - Bearing
HP - Silver Star - 61 - Bearing
McCoy - Old - 52 - Bearing
MDS - 38 Heli Pro - 29 - Bearing
MDS - 46 All Models - Bearing
MDS - 58 - 68 - Bearing
MDS - Pro - 61 - Bearing
Merco® - 16 All Models - Bearing
Merco® - 48 All Models - Bearing
Merco® - 49 All Models - Bearing
MVVS - Twin - 40 - Bearing
OPS - Supra RC - 21 - Bearing
OS Engines® - H Old - 46 - Bearing
OS Engines® - VR-DF - 61 - Bearing
OS Engines® - VR-M - 91 - Bearing
OS Engines® - VR-Marine New - 81 - Bearing
Picco® - 15 All Models - Bearing
Picco® - Air - 45 - Bearing
Rossi® - New Marine - 80 - Bearing
Saito® - 270 All Models - Bearing
Saito® - 72 All Models - Bearing
Saito® - FA 45 - Bearing
Saito® - FA 72 - 30 - Replacement Front Bearing
Saito® - FA TI Inline Twin - 82 - Replacement Front Bearing
Saito® - Twin Old - 45 - Bearing
Super Tigre® - G90 Ring Old - 75 - Bearing
Super Tigre® - S - 40 - Bearing
Super Tigre® - S - 61 - Bearing
Super Tigre® - S - 65 - Bearing
Super Tigre® - S K - 65 - Bearing
Super Tigre® - S K - 75 - Bearing
Super Tigre® - S K - 90 - Bearing
Thunder Tiger® - SF - 61 - Bearing

Cross References

View full details

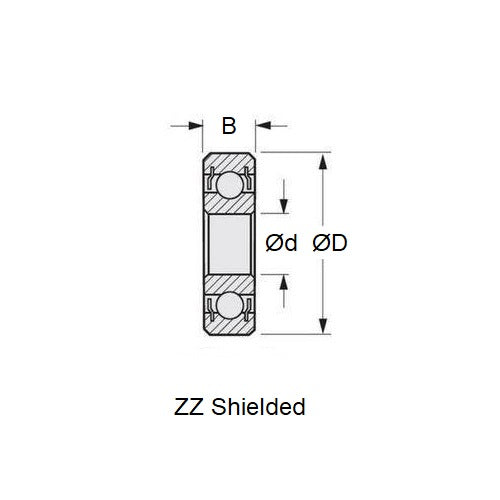

S608-ZZ-MC3Diagram

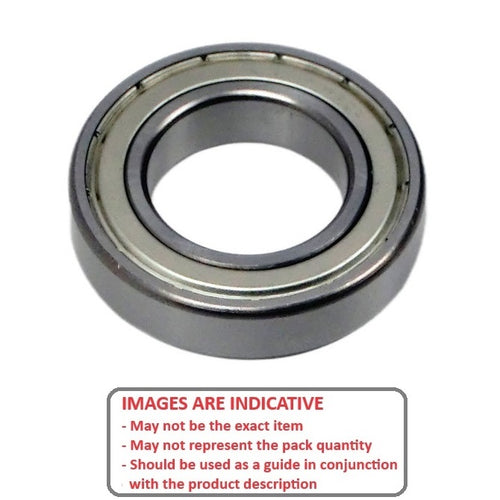

S608-ZZ-MC3Image
