688A-CSN-ZZS-ACO-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

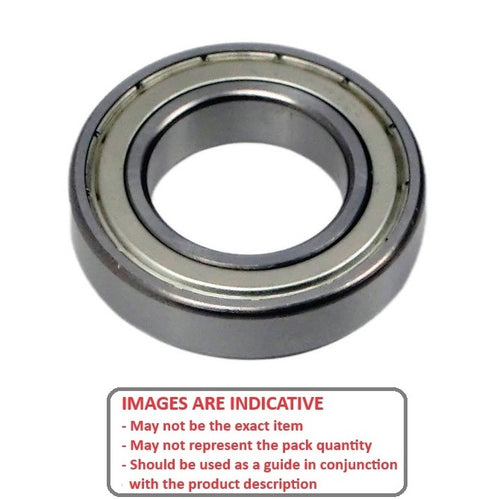

Deleted Item. Available while stocks last. Double shielded ceramic-hybrid bearing with light anti-rust lubricant

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

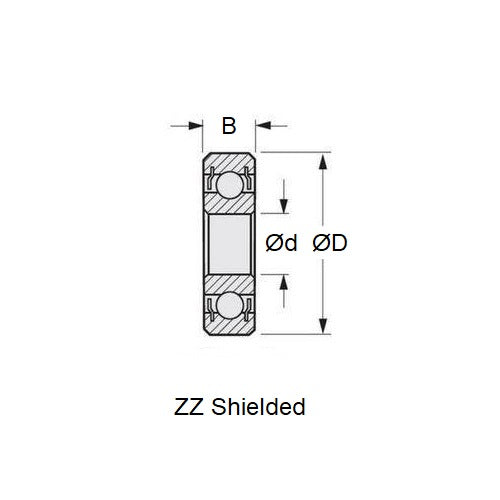

ID (d) : 8.000 mm
O.D. (D) 16.000 mm
Width (B) 5.000 mm
Precision Grade Economy
Closure Type ZZS
Bearing Type Radial
Material Chrome Steel SAE 52100 - Ceramic Si3N4 Balls

Lubrication Type Oil
Lubrication Name ACO Anti Corrosion Oil Film
Basic Part 688A
Limiting Speed 40850
Cage Type Standard
Static Load Rating KGf 45.6
Dynamic Load Rating KGf 97.3
Radii 0.20 mm
Inner Shoulder (UI) 9.65mm
Outer Shoulder (UO) 14.20 mm
Number of Balls 10
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type ZZS
Max Temperature 170 Deg. C

Country of Origin: US

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Nitro Engine Parts
CEN - Genesis 46 RTR Chasis 1/8 Scale - Replacement Bearing
CEN - Matrix - Replacement Bearing
Duratrax® - Quake Nitro - Replacement Bearing
Duratrax® - Thunder Quake - Replacement Bearing
GS General Silicone - Storm Pro Gas - Replacement Bearing
GS General Silicone - Storm RTR - Replacement Bearing
GS General Silicone - Storm Unlimited Truck SUT-RTR - Replacement Bearing
Hobao® - Hyper 8 - Replacement Bearing
Hobao® - Hyper E ST Truggy - Replacement Bearing
Hot Bodies® - Lightning 2 - Replacement Bearing
Hot Bodies® - Lightning 2 Pro - Replacement Bearing
Hot Bodies® - Lightning 2 RR - Replacement Bearing
Hot Bodies® - Lightning Pro With O Radio - Replacement Bearing
Hot Bodies® - Lightning RR Truggy RTR 1/10 - Replacement Bearing
Hot Bodies® - Lightning Stadium Pro - Replacement Bearing
Hot Bodies® - Lightning Stadium RTR - Replacement Bearing
Hot Bodies® - Lightning Street 1/7 RTR - Replacement Bearing
HPI - E Savage - Replacement Bearing
HPI - Hellfire - Replacement Bearing
HPI - Savage 25 and RTR - Replacement Bearing
HPI - Savage and SavageX - Replacement Bearing
HPI - Savage SS - Replacement Bearing
HPI - Savage XSS - Replacement Bearing
Kyosho® - Burns - Replacement Bearing
Kyosho® - Burns DX - Replacement Bearing
Kyosho® - Crusher - Replacement Bearing
Kyosho® - Inferno Gas - Replacement Bearing
Kyosho® - Inferno ST-R - Replacement Bearing
Kyosho® - Inferno Truggy - Replacement Bearing
Kyosho® - Landmark Upgrade - Replacement Bearing
Kyosho® - Mad Armour - Replacement Bearing
Kyosho® - Mad Force RTR - Replacement Bearing
Kyosho® - MP 7.5 - Replacement Bearing
Kyosho® - MP 7.5 Kanai 2 Inferno - Replacement Bearing
Kyosho® - MP 7.5 Kanai 2 Pro-Sports - Replacement Bearing
Kyosho® - MP 7.5 Kanai 3 Inferno - Replacement Bearing
Kyosho® - MP 7.5 Kanai Inferno - Replacement Bearing
Kyosho® - MP 7.5 Sports Inferno - Replacement Bearing
Kyosho® - MP 777 Inferno - Replacement Bearing
Kyosho® - MP 777 SP1 Inferno - Replacement Bearing
Kyosho® - MP 777 SP2 - Replacement Bearing
Kyosho® - MP 777 ST-R Truggy - Replacement Bearing
Kyosho® - MP-5 - Replacement Bearing
Kyosho® - MP-6 International - Replacement Bearing
Kyosho® - Twin Force -Motor Truck - Replacement Bearing
Kyosho® - USA 1 Nitro - Replacement Bearing
Kyosho® - USA-1 Gas - Replacement Bearing
Lauterbach® - Sprint - Replacement Bearing
MSR - X5T - Replacement Bearing
Mugen® - Athlete - Replacement Bearing
Ofna® - 9.5 Pro - Replacement Bearing
Ofna® - 9.5 Violator RTR - Replacement Bearing
Ofna® - Dominator - Replacement Bearing
Ofna® - Hyper 7 Pro - Replacement Bearing
Ofna® - Hyper 8 - Replacement Bearing
Ofna® - Hyper PBS - Replacement Bearing
Ofna® - Hyper PCR - Replacement Bearing
Ofna® - Jammin - Replacement Bearing
Ofna® - Jammin 1 CR - Replacement Bearing
Ofna® - Jammin 1 CR With Steering - Replacement Bearing
Ofna® - MBX - Replacement Bearing
Ofna® - Mutilator - Replacement Bearing
Ofna® - Pirate 10 RTR With .12 Engine G - Replacement Bearing
Ofna® - Ravager - Replacement Bearing
Ofna® - Titan Deluxe - Replacement Bearing
Ofna® - Titan Twin - Replacement Bearing
Ofna® - Ultra LX COMP RTR - Replacement Bearing
Schumaker® - Boss Cat - Works Edition - Replacement Bearing
Schumaker® - Boss Cat 4WD - Replacement Bearing
Schumaker® - Cat - Replacement Bearing
Schumaker® - Cougar Works - Replacement Bearing
Schumaker® - Ford Sierra RS - Replacement Bearing
Schumaker® - Pro Cat - Replacement Bearing
Schumaker® - RS Cosworth 4X4 - Replacement Bearing
Schumaker® - Shotgun - Replacement Bearing
Schumaker® - XLS Cat - Replacement Bearing
Serpent® - 9000 - Replacement Bearing
Sport Werks® - Mayhem Pro - Replacement Bearing
Sport Werks® - Mayhem RTR - Replacement Bearing
Tamiya® - Madcap - Replacement Bearing
Team Associated® - MGT4.60SE - Replacement Bearing
Team Associated® - Monster GT Truck and RTR Nitro Off Road - Replacement Bearing
Team Losi® - LST Super Truck LOSB0010 - Replacement Bearing
Team Losi® - Muggy - Replacement Bearing
Thunder Tiger® - EB4 - Replacement Bearing
Thunder Tiger® - EB4 S2 RTR - Replacement Bearing
Thunder Tiger® - EB4-S3 - Replacement Bearing
Thunder Tiger® - Mirage - Replacement Bearing
Thunder Tiger® - Mirage 1/8 Scale Gas - Replacement Bearing
Thunder Tiger® - ST1 - Replacement Bearing
Thunder Tiger® - TTRS3 - Replacement Bearing
Thunder Tiger® - V-Spec 1/8 Scale Gas - Replacement Bearing
Thunder Tiger® - V-Spec Sealed - Replacement Bearing
Traxxas® - Revo - Replacement Bearing
Traxxas® - Sledgehammer - Replacement Bearing
Xray® - XB8 Nitro - Replacement Bearing
Xray® - XB8R - Replacement Bearing
Xray® - XB8-TQ - Replacement Bearing
XTM Racing - Mammoth Massive Appeal RTR - Replacement Bearing
XTM Racing - Nitro Mammoth RTR - Replacement Bearing
XTM Racing - X Factor I and 2 - Replacement Bearing
XTM Racing - X Factor I and 2 With Clutch - Replacement Bearing
Enya® - 11 CX - Replacement Front Bearing

Cross References

Shielded Width A 688/5
Shielded 688A / 5
ISO 688CZZAF2
ISO 688C-ZZ-AF2
688CZAF2
688C-Z-AF2
688A Basic Size Ref
