MR148A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

Double shielded standard bearing

ID (d) : 8.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.315 in.)
O.D. (D) 14.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.551 in.)
Width (B) 4.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.157 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR148A
Limiting Speed 38000
Cage Type Ribbon
Static Load Rating KGf 39
Dynamic Load Rating KGf 83
Radii 0.20 mm
Inner Shoulder (UI) 9.20mm
Outer Shoulder (UO) 12.80 mm
Number of Balls 10
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Helicopter Parts
Anderson® - 8000 1-10 Gas - Replacement Bearing
BMT - 931 Austin QCFE - Replacement Bearing
CEN - SPI GP Gas Upgrade - Replacement Bearing
CEN - SPI Mercedes CLK Electric UPGR - Replacement Bearing
Duratrax® - LXT Gas Conversion - Replacement Bearing
Duratrax® - MT Pro - Replacement Bearing
Duratrax® - Overdrive ST - Replacement Bearing
Duratrax® - ST Pro - Replacement Bearing
Hobbytech® - HT1 1/10 Scale - Replacement Bearing
Kyosho® - 1-10 Gas - Replacement Bearing
Kyosho® - 67 Vette - Replacement Bearing
Kyosho® - Aero Streak - Replacement Bearing
Kyosho® - ATV - Replacement Bearing
Kyosho® - Baja Beetle - Replacement Bearing
Kyosho® - Cobra Daytona - Replacement Bearing
Kyosho® - Corvette - Replacement Bearing
Kyosho® - Dodge Ram - Replacement Bearing
Kyosho® - EP Alpha 4WD - Replacement Bearing
Kyosho® - EP Spider - Replacement Bearing
Kyosho® - F1 FW-04 With GS-15R - Replacement Bearing
Kyosho® - Ferrari 250 GTO - Replacement Bearing
Kyosho® - Ferrari 330 P4 - Replacement Bearing
Kyosho® - Ferrari Diablo - Replacement Bearing
Kyosho® - Ferrari F189 - Replacement Bearing
Kyosho® - Ford GT40 - Replacement Bearing
Kyosho® - FW-05 Foam Tyre Special Chassis - Replacement Bearing
Kyosho® - FW-05R - Replacement Bearing
Kyosho® - FW-05R INDIV. Upgrade - Replacement Bearing
Kyosho® - FX15 Inferno - Replacement Bearing
Kyosho® - Giga Crusher - Replacement Bearing
Kyosho® - Giga Crusher SF - Replacement Bearing
Kyosho® - GP Alpha 4WD - Replacement Bearing
Kyosho® - GP Ultima® RB RTR - Replacement Bearing
Kyosho® - GP10 4WD - Replacement Bearing
Kyosho® - GP10S 4 WD - Replacement Bearing
Kyosho® - Hi-Rider - Replacement Bearing
Kyosho® - Inferno 10 - Replacement Bearing
Kyosho® - Inferno TR-15 - Replacement Bearing
Kyosho® - Laser 2000 EP 4 WD - Replacement Bearing
Kyosho® - Laser ZX - Replacement Bearing
Kyosho® - Laser ZX Upgrade - Replacement Bearing
Kyosho® - Mclaren BMW - Replacement Bearing
Kyosho® - Mclaren F-1 - Replacement Bearing
Kyosho® - Mercedes AMG - Replacement Bearing
Kyosho® - MGB MKI - Replacement Bearing
Kyosho® - Nissan 300ZX - Replacement Bearing
Kyosho® - Nissan Skyline - Replacement Bearing
Kyosho® - Nitro Blizzard - Replacement Bearing
Kyosho® - Nitro Crusher - Replacement Bearing
Kyosho® - Opel Calibra - Replacement Bearing
Kyosho® - Opel Calibra TF2 - Replacement Bearing
Kyosho® - Optionima - Replacement Bearing
Kyosho® - Optionima Complete Kit - Replacement Bearing
Kyosho® - Optionima-Mid Optionima Mid Turbo SE - Replacement Bearing
Kyosho® - Optionima-Mid Turbo SE - Replacement Bearing
Kyosho® - Outlaw Rampage 1/10 Gas - Replacement Bearing
Kyosho® - Outlaw RMPG 1/10 Gas. - Replacement Bearing
Kyosho® - Outlaw Truck - Replacement Bearing
Kyosho® - Outlaw Truck Ultima® Pro XL - Replacement Bearing
Kyosho® - Outrage ST - Replacement Bearing
Kyosho® - Penske PC19 - Replacement Bearing
Kyosho® - Penske PC19 ZR1 Rampage Gas - Replacement Bearing
Kyosho® - Porsche 911 - Turbo - Nissan 300 ZX - Replacement Bearing
Kyosho® - Porsche 911 Turbo - Replacement Bearing
Kyosho® - Porsche 911GT-2 - Replacement Bearing
Kyosho® - ProX and Trans - Replacement Bearing
Kyosho® - Pure Ten - Replacement Bearing
Kyosho® - Pure Ten Alpha 2 EP - Replacement Bearing
Kyosho® - Pure Ten EP Alpha 4WD - Replacement Bearing
Kyosho® - Quad Rider EV - Replacement Bearing
Kyosho® - Quad Rider Gas - Replacement Bearing
Kyosho® - Rampage 10 - ZR-1 Corvette Slingshot - Replacement Bearing
Kyosho® - Rampage Sport 31324 - Replacement Bearing
Kyosho® - RS200 Ford - Replacement Bearing
Kyosho® - Sandmaster Gas - Replacement Bearing
Kyosho® - Sard Supra - Replacement Bearing
Kyosho® - Shadow - Replacement Bearing
Kyosho® - Sideways - Replacement Bearing
Kyosho® - Slingshot - Replacement Bearing
Kyosho® - Spider - Replacement Bearing
Kyosho® - Sport Racer - Replacement Bearing
Kyosho® - Stinger - Replacement Bearing
Kyosho® - Stock Car - Replacement Bearing
Kyosho® - Subaru Imprezza - Replacement Bearing
Kyosho® - Super 10 - Centre Gearbox Bearing
Kyosho® - Super 10 - Replacement Bearing
Kyosho® - Super 10 - Replacement Diff Bearing
Kyosho® - Super Ten FW-04 - Replacement Bearing
Kyosho® - TF3 Series - Replacement Bearing
Kyosho® - TF-4 Spider Type R - Replacement Bearing
Kyosho® - Thunderbird Gas - Replacement Bearing
Kyosho® - Triumph - Replacement Bearing
Kyosho® - TS-2 - Replacement Bearing
Kyosho® - Ultima - Replacement Bearing
Kyosho® - Ultima® II - Replacement Bearing
Kyosho® - Ultima® Pro XL - Replacement Bearing
Kyosho® - Ultima® ST EP Sports - Replacement Bearing
Kyosho® - Ultima® ST GP Sports - Replacement Bearing
Kyosho® - Vanning - Replacement Bearing
Kyosho® - V-One RR - Replacement Bearing
Kyosho® - Wild Dodge Ram Truck 1/10 Scale - Replacement Bearing
Kyosho® - Zaboon - Replacement Bearing
Kyosho® - ZR1 - Rampage Gas - Replacement Bearing
Kyosho® - ZR1 Rampage 10 - Replacement Bearing
Kyosho® - ZR1 Rampage Complete Gas - Replacement Bearing
Kyosho® - ZR1 Rampage Upgrade Gas - Replacement Bearing
Megatech® - 1-10 Gas - Replacement Bearing
Megatech® - Racer New - Replacement Bearing
Megatech® - Racer Old - Replacement Bearing
Tamiya® - TS-02 GTI - Replacement Bearing
Team Losi® - 1-8 Scale Buggy with clutch bell - Replacement Bearing
Team Losi® - Eight-T - Replacement Bearing
Team Losi® - JR T Trans - Replacement Bearing
Team Losi® - JRX2 - Replacement Bearing
Team Losi® - JRX2 Truck LX-T - Replacement Bearing
Team Losi® - JRXT Truck - Replacement Bearing
Team Losi® - LX-T - Replacement Bearing
Tower® - ST Nitro-15 - Replacement Bearing
Trinity® - Reflex NT 1/10 Scale - Replacement Bearing
Trinity® - Reflex NT Nitro With Clutch Bell - Replacement Bearing
Venom® Racing - Mini Giant RTR 4WD - Replacement Bearing
Yokomo® - MR-4BX - Replacement Bearing
Yokomo® - MR-4TC SD CGM - Replacement Bearing
Yokomo® - MR-4TC SD CM Drift Package - Replacement Bearing
Yokomo® - MR-4TC SD SSG /Black - Replacement Bearing
Align® - Trex 600 CF - Replacement Bearing
Mikado® - Logo 10 - Replacement Bearing
Mikado® - Logo 10 3D Version - Replacement Bearing
Synergy® - N9 - Replacement Bearing

Cross References

Kyosho® 1911
GRW 688A-142-2Z
Nachi® 8M14-ZZ
NTN® BC8-14-ZZA
BSC ML8014-ZZ
ISO MR148ZZ
ISO MR148-ZZ
SKF W637-8-2Z
NTN® WBC8-14-ZZ
NTN® WBC8-14-ZZA
BC814ZZA
8M14ZZ
L1480-ZZ
L1480ZZ
W63782Z
WBC814ZZ
WBC814ZZA
MR148AZZMC3
MR148A-ZZMC3
ML8014ZZ
688A1422Z
MR148A Basic Size Ref

View full details

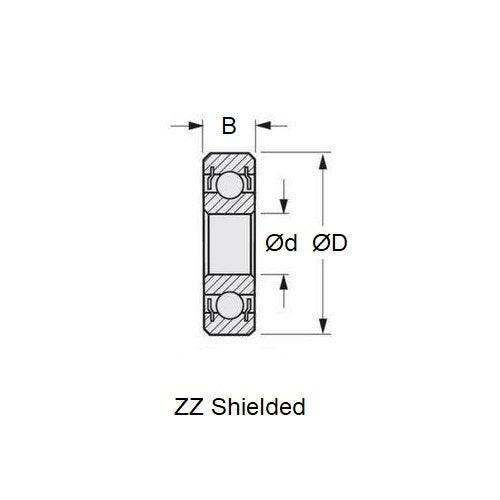

MR148A-ZZ-MC3Diagram

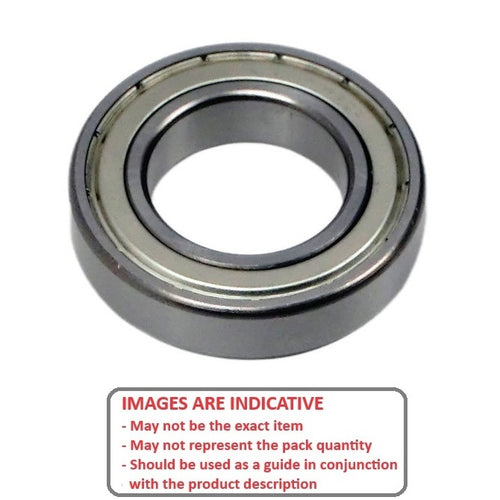

MR148A-ZZ-MC3Image
