QD-E-0873 - Datasheet

MBA

Category Information

Bushings - QD

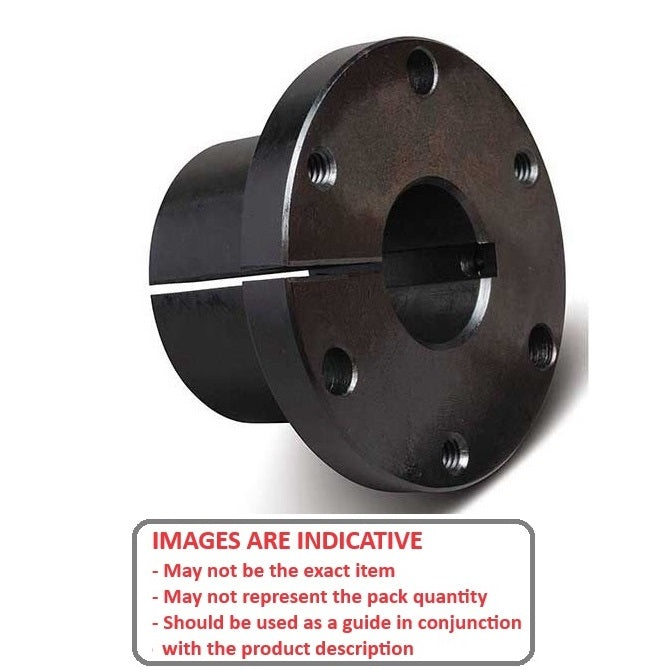

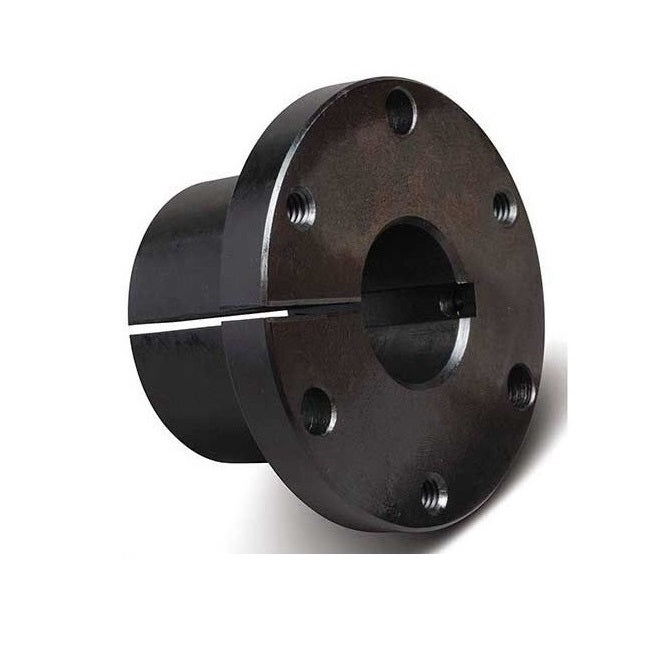

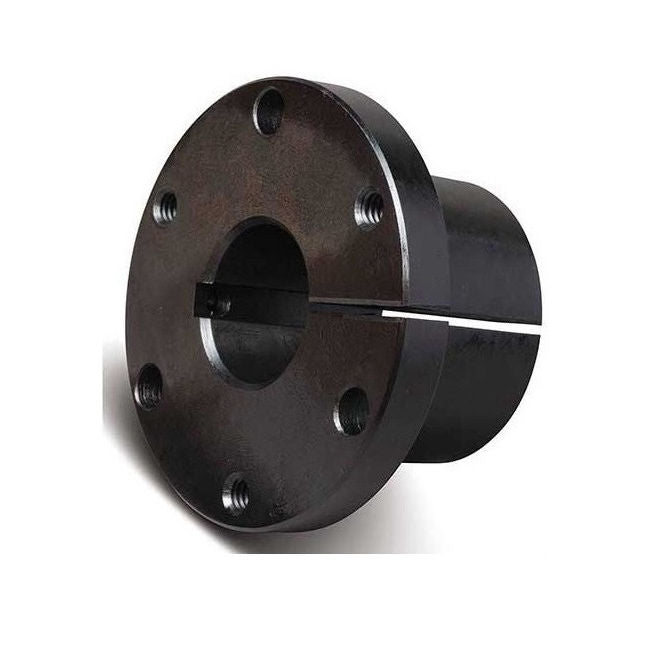

QD Bushings. Used with QD type cast iron vee pulleys, timing pulleys, sprockets, poly vee pulleys and other parts designed specifically for use with a QD bushing

  • Similar to a taperlock bush, but not interchangeable
  • QD bushings like taperlock bushings allow for use of a single stock pulley for many applications with different shaft sizes
  • Select the correct QD series to suit the pulley

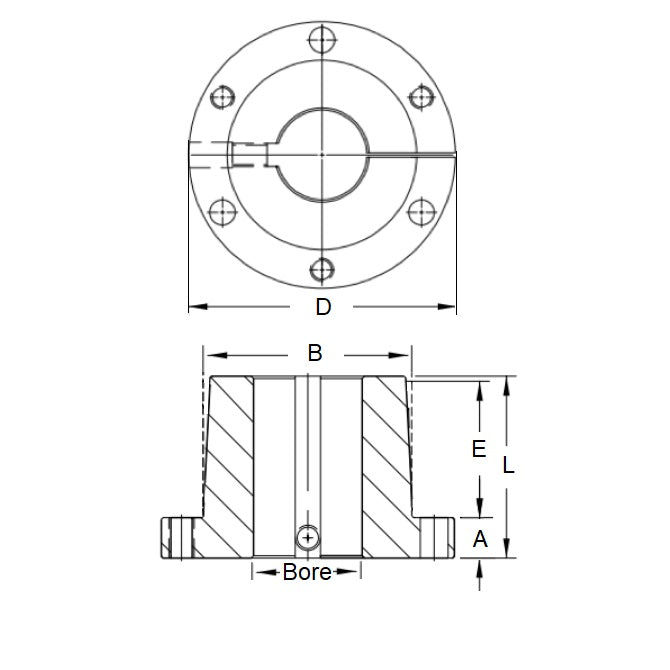

Product Data

  • Bore : 87.313 mm
    (Equiv. 3.438 in.)
  • Series E
  • Flange OD (D) 152.40 mm
    (Equiv. 6 in.)
  • Bolt Circle Dia. 127.00 mm
  • Overall Length (L) 66.68 mm
  • Bush Length (E) 47.63 mm
  • Large End OD (B) 97.38 mm
  • Flange Thickness (A) 19.05 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Martin Ex3-7-16
    • Ex3716
