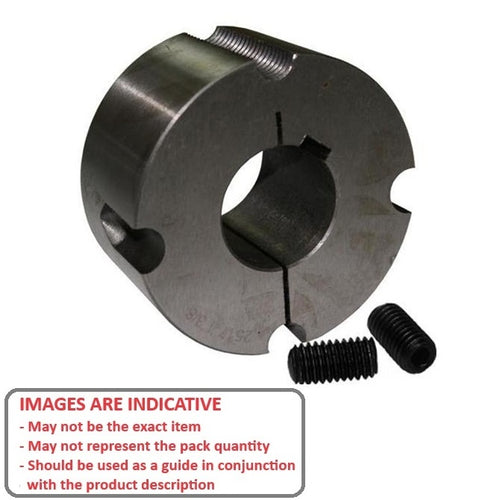

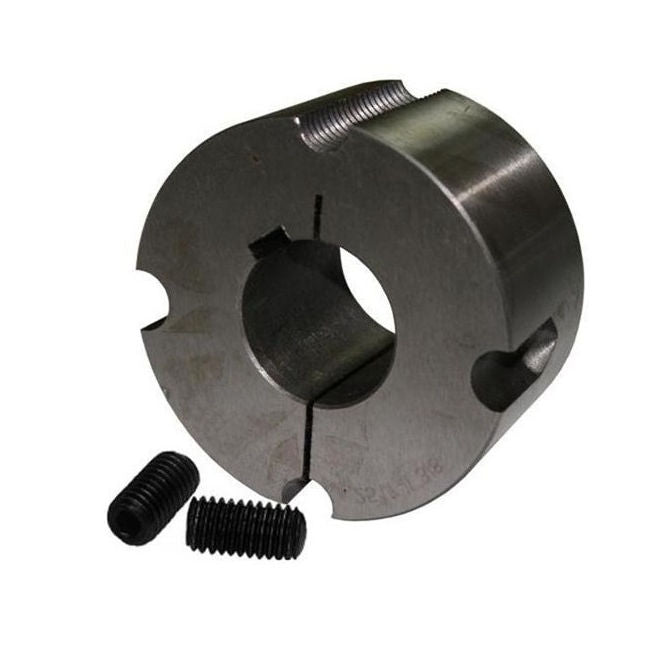

TLB-3525-0826 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data
- Bore (d) : 82.550 mm
- Large End Dia. (D) 127.0 mm
- Length (L) 63.5 mm
- Taperlock Series 3525
- No of Screws 3
- Screw Size 1/2x1-1/2 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 3525x3-1-4
- 57095K694
- 3525x314
