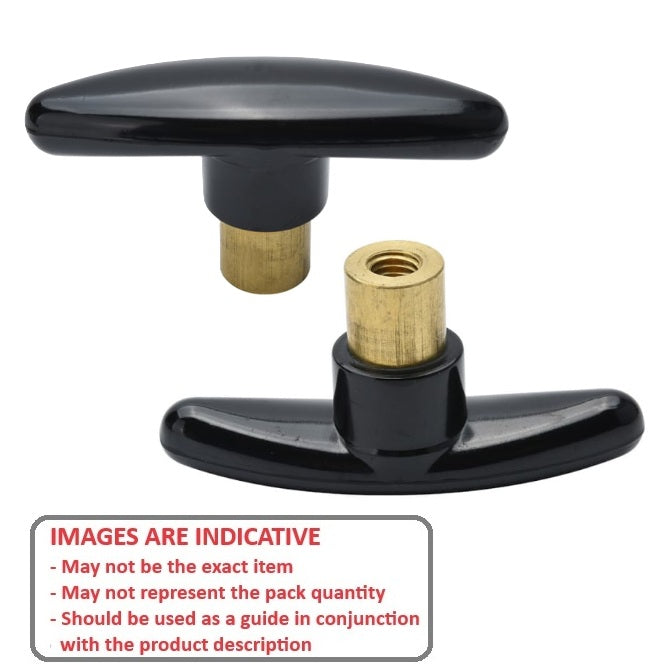

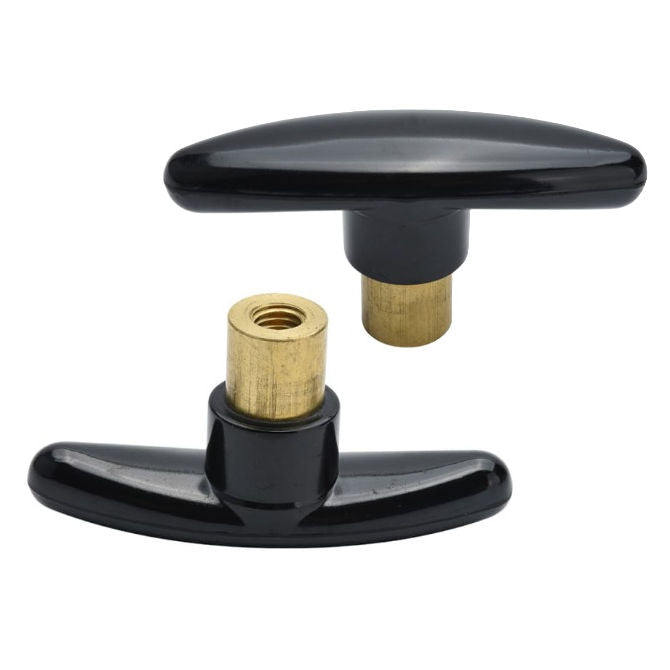

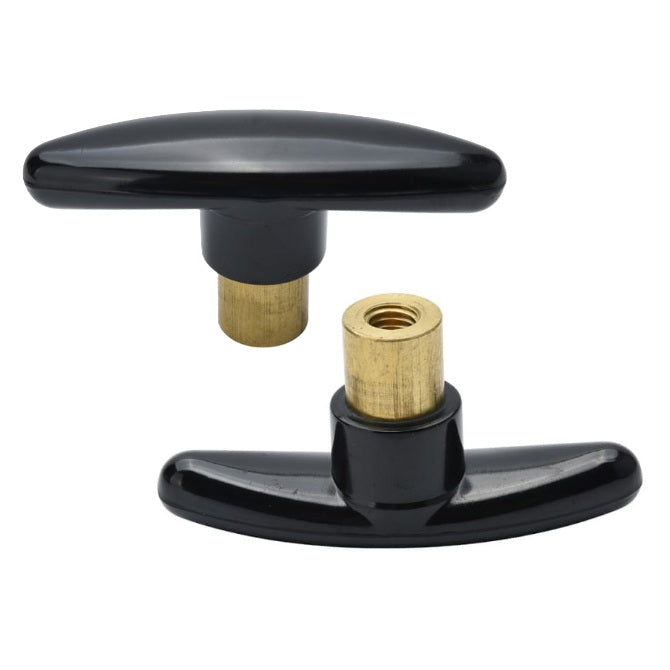

KF080M-080-W - Datasheet

MBA

Product Data

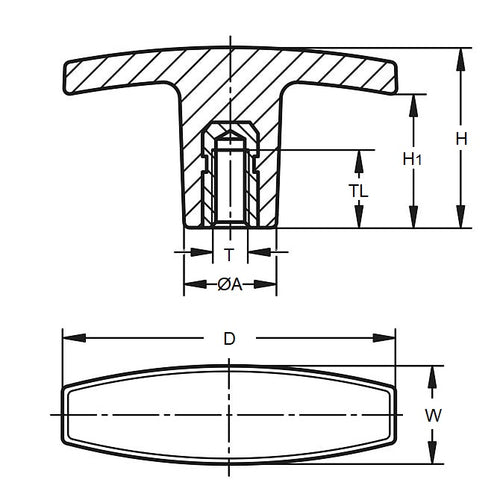

• Thread Size : M8x1.25 _{+ 0.10 / - 0.00}
• Knob Length (A ) 80.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 3.15 in.)
• Thread Depth 26.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 1.024 in.)
• Colour Black
• Style Wing
• Phenolic
• Brass
• E 43.5

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NTXF8
• CNTXF8
