Miniature Bearings Australia
SMR128A-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

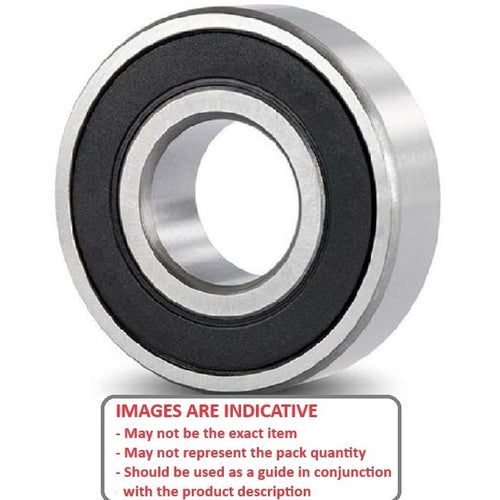

Double black rubber sealed economy bearing

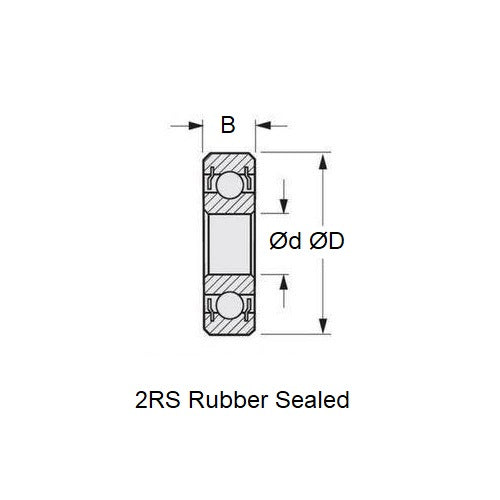

- ID (d) : 8.000 mm
- O.D. (D) 12.000 mm
- Width (B) 3.500 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- A-Tech® - XMB4 Buggy - Replacement Bearing
- A-Tech® - XMT-4 Truck - Replacement Bearing
- Cox® - Bandito - Replacement Bearing
- Cox® - Ultra Stock - Replacement Bearing
- Cross Fire Force® - F1 Electric - Replacement Bearing
- Duratrax® - Thunder Quake - Replacement Bearing
- Duratrax® - Vendett ST Truck - Replacement Bearing
- Kyosho® - Big Boss - Replacement Bearing
- Kyosho® - Big Brute - Replacement Bearing
- Kyosho® - Double Dare USA-1 - Replacement Bearing
- Kyosho® - Formula 1 Benitone B192 - Replacement Bearing
- Kyosho® - Formula 1 Ferrari F92A - Replacement Bearing
- Kyosho® - Formula 1 Jordan Yam - Replacement Bearing
- Kyosho® - Formula 1 Williams FW14 - Replacement Bearing
- Kyosho® - Indy Scotch - Replacement Bearing
- Kyosho® - Nitro Brute - Replacement Bearing
- Kyosho® - SR5 Truck - Replacement Bearing
- Roadrunner® - XPRESS Pro MK1 - Replacement Bearing
- Serpent® - 835 1-10 2WD - Replacement Bearing
- Sport Werks® - Raven ST - Replacement Bearing
- Tamiya® - Acura Complete - Replacement Bearing
- Tamiya® - Acura Upgrade - Replacement Bearing
- Tamiya® - Aero Max - Replacement Bearing
- Tamiya® - ClodBuster Sealed - Replacement Bearing
- Tamiya® - ClodBusterSuper ,Bullhead - Replacement Bearing
- Tamiya® - F1 - Replacement Bearing
- Tamiya® - F1 Series - Replacement Bearing
- Tamiya® - F103 Series - Replacement Bearing
- Tamiya® - F201 Complete Kit - Replacement Bearing
- Tamiya® - Ferrari F189 - Replacement Bearing
- Tamiya® - Jaguar Complete - Replacement Bearing
- Tamiya® - Jaguar Upgrade - Replacement Bearing
- Tamiya® - Merceded 1/8 Gas - Replacement Bearing
- Tamiya® - Merceded C11 Complete - Replacement Bearing
- Tamiya® - Nissan 300ZX - Replacement Bearing
- Tamiya® - Nitro Force - Replacement Bearing
- Tamiya® - Rising STorm - Replacement Bearing
- Tamiya® - Sauber - Replacement Bearing
- Tamiya® - TB Evolution III - Replacement Bearing
- Tamiya® - TB-01 - Replacement Bearing
- Tamiya® - TB-02 - Replacement Bearing
- Tamiya® - Terra Crusher - Replacement Bearing
- Tamiya® - Terrell F40 Upgrade - Replacement Bearing
- Tamiya® - TGR - Replacement Bearing
- Tamiya® - TGX - Replacement Bearing
- Tamiya® - TNX Nitro With Steering - Replacement Bearing
- Tamiya® - TT-01 - Replacement Bearing
- Xray® - M18 - Replacement Bearing
- Xray® - M18 Upgrade Option - Replacement Bearing
- Xray® - M18T - Replacement Bearing
- Xray® - NT-18 - Replacement Bearing
Cross References
- Sealed Width A SMR128 / 4
- Sealed SMR128A / 4
- Sealed Width A SSMR128 / 4
- Sealed SSMR128A / 4
- MR128A Basic Size Ref
