MAG-DR-071-031-15-C - Datasheet

MBA

Category Information

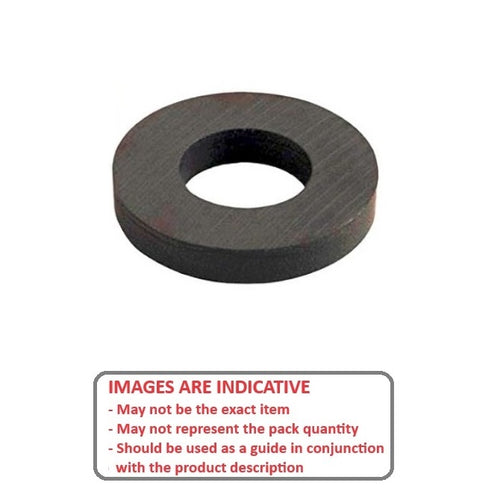

Magnets - Ring - Ceramic

Ceramic Ring Magnets. Low cost, light weight, high energy material

  • Non conductive hard brittle material

Product Data

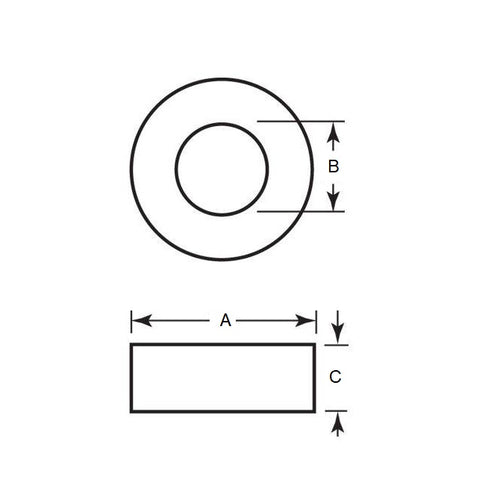

  • Diameter Nom. (A) : 71.12 mm
  • Inside Diameter Nom. (B) 30.56 mm
  • Height (C) 14.99 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® IM-20
    • IM20
