CFB070-45-120M-R70 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 70.0 mm
    (Equiv. 2.756 in.)
  • Body Height (H) 45.0 mm
    (Equiv. 1.772 in.)
  • Thread Size M12x1.75
  • Shore Hardness 70
  • Compression Load 890 Kg (lbs)
  • Deflection 11.3 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 7045FFB1270
  • 7045FFB12-70
View full details

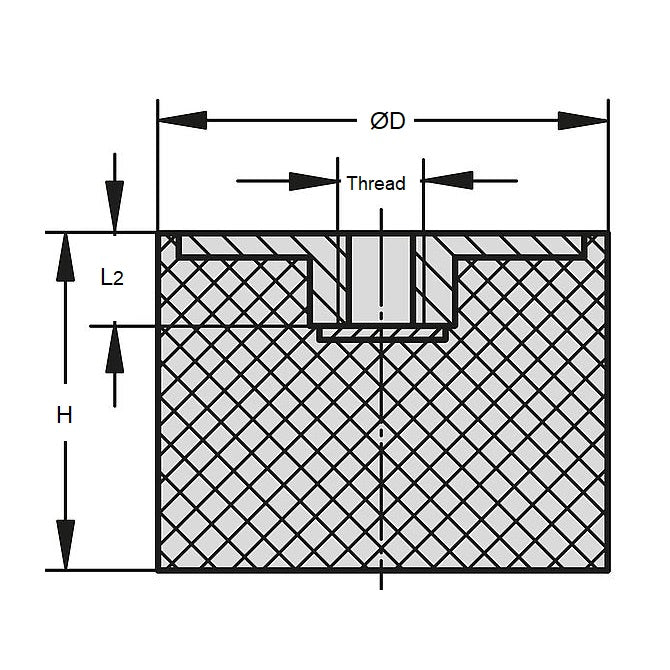

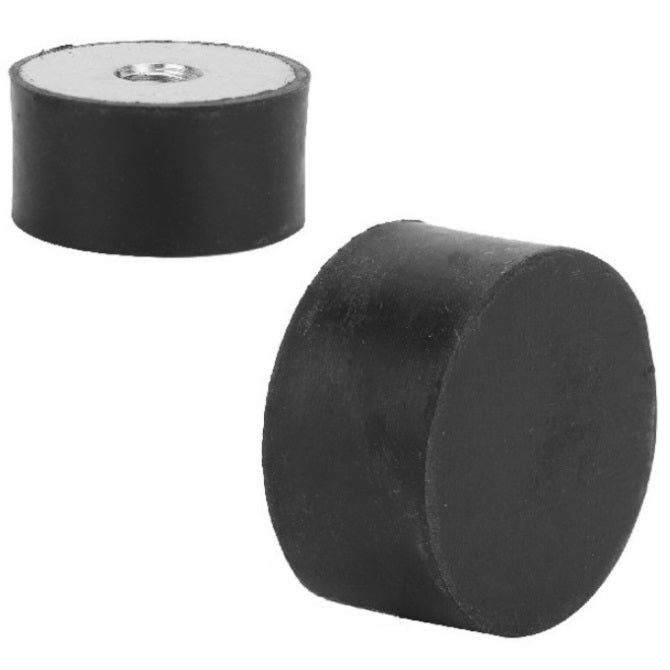

CFB070-45-120M-R70DiagramCFB070-45-120M-R70Image
