CMB070-45-100M-R45 - Datasheet
MBA
Category Information

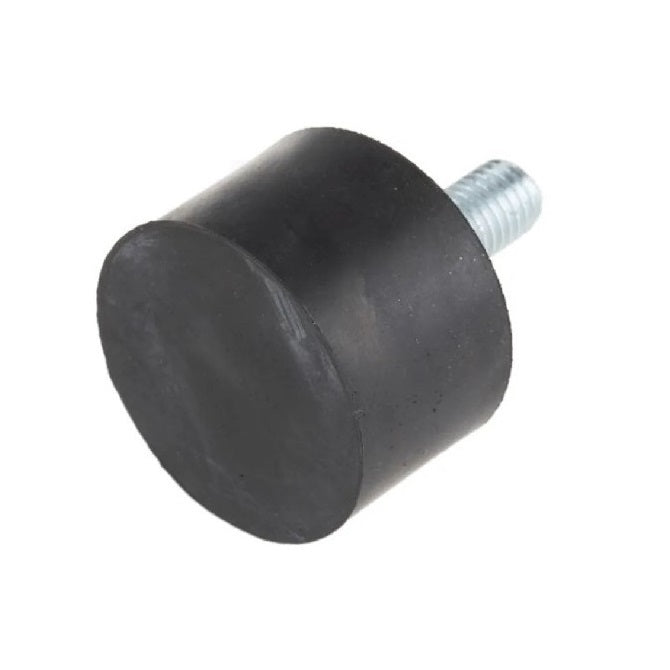

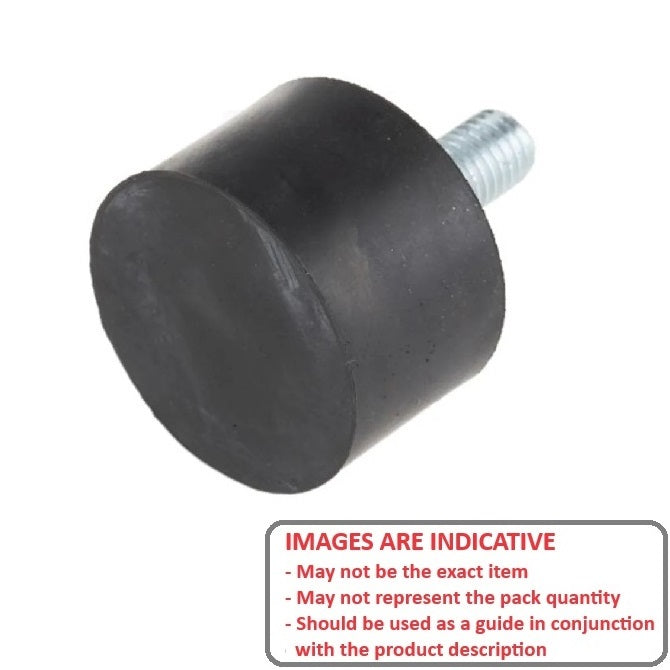

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

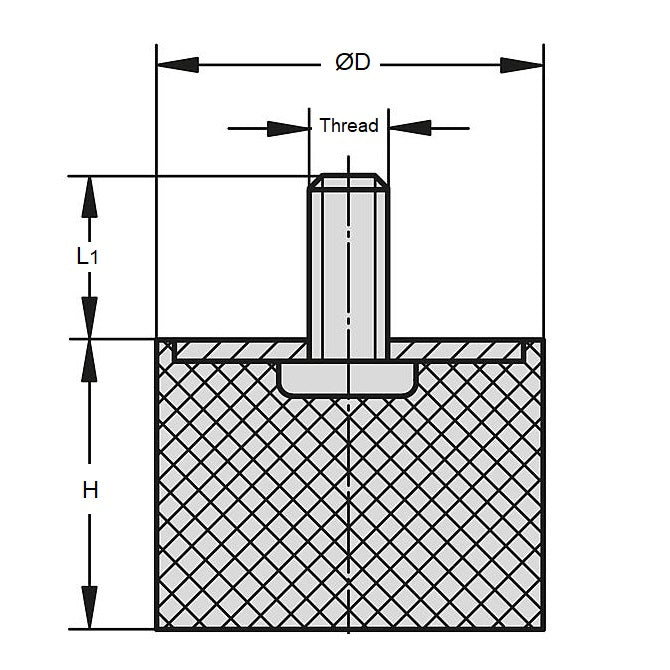

- Nom. Body Diameter (D)
:
70.0
mm
(Equiv. 2.756 in.) - Body Height (H)
45.0
mm
(Equiv. 1.772 in.) - Thread Size (G) M10x1.5
- Shore Hardness 45
- Thread Length (L1) 25.0 mm
- Compression Load 436.5 Kg
- Deflection 11.3 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7045MFB25-45
- 7045MFB2545
