RP079-0572-Z - Datasheet

Brighton Best

Category Information

Pins - Roll - Zinc Plated

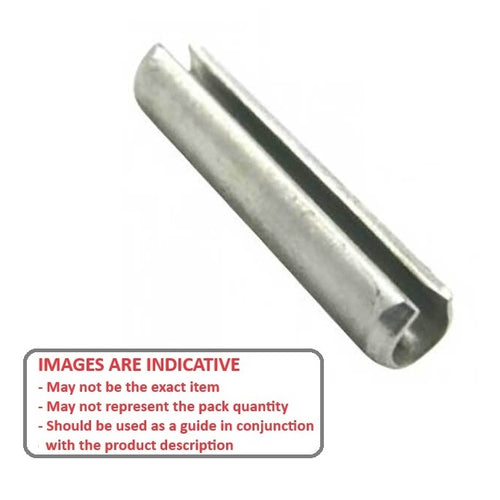

Zinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

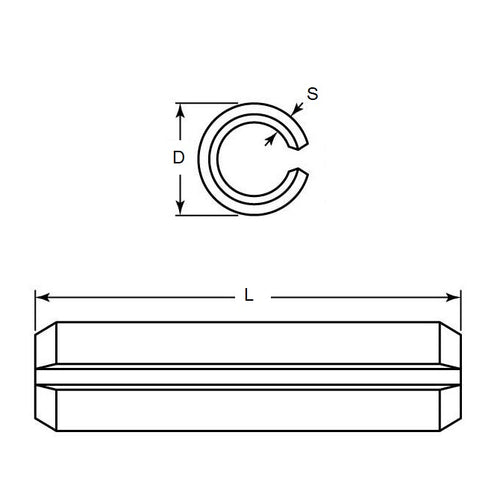

  • Nominal Diameter (D) : 7.94 mm
  • Length (L) 57.20 mm
  • Free Diameter 8.73 mm
  • Thickness (S) 1.57 mm
  • Chamfer Length (cL) 0.36-2.03 mm
  • Chamfer Diameter (cD) 7.8 mm
  • Standard DIN1481 / ISO8752
  • Material Carbon Spring Steel Zinc Plated
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • 90692A762
  • NoCor® SP-313-2252
  • Brighton Best® V80198
  • SP3132252
View full details
RP079-0572-ZDiagramRP079-0572-ZImage
