FRB-58RS - Datasheet
MBA
Category Information

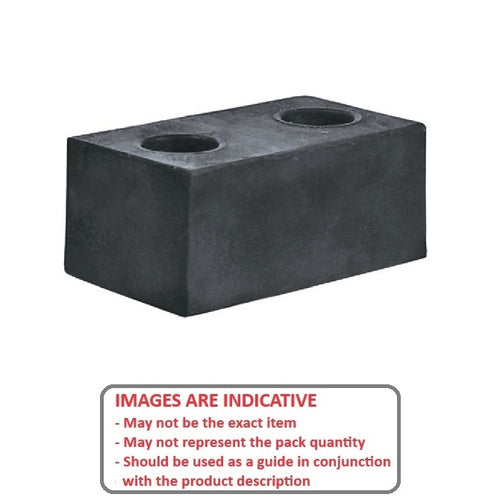

Bumpers - Square and Rectangular - Steel Plated - NeopreneNeoprene Steel Plated Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Neoprene bonded to steel plate.
- Square and rectangular shape bumpers, used to provide a protective cushion, prevent slipping, dampen vibrations, or absorb shock.
- Commonly used for furniture, electronics, and industrial equipment. Can be attached using adhesive, screws, or other mounting hardware.
Product Data

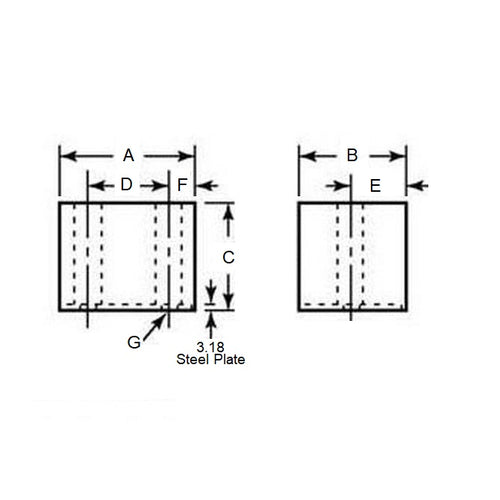

- Length (A)
:
63.500
mm
(Equiv. 2.5 in.) - Width (B)
15.875
mm
(Equiv. 0.625 in.) - Height (C)
15.875
mm
(Equiv. 0.625 in.) - Distance Between Holes (D) 38.100 mm
- Length Centre Hole (F) 12.700
- Hardness 80A
- No. of Holes 2
- Hole Size (G) 6.350
- Width Centre Hole (E) 7.925 mm
- Material Neoprene Rubber
