MR95A-2RG-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

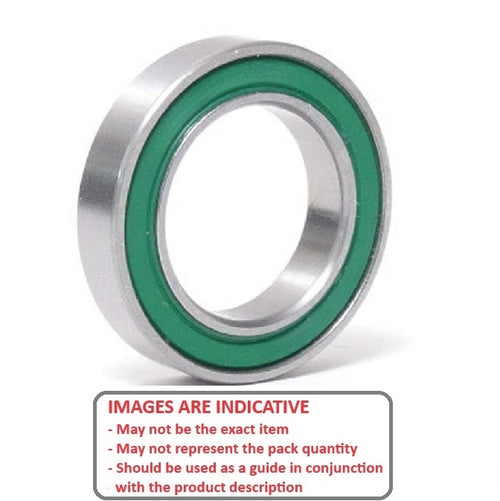

Double green rubber sealed economy bearing

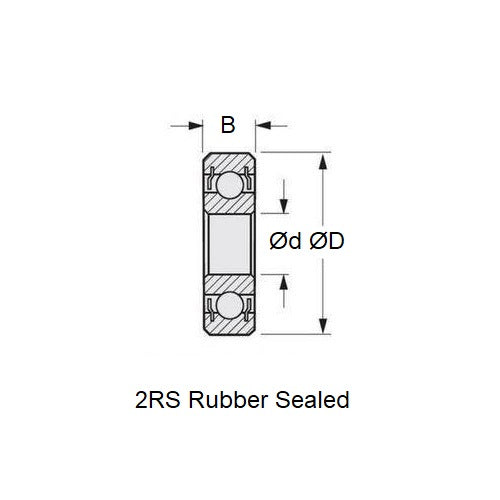

- ID (d) : 5.000 mm
- O.D. (D) 9.000 mm
- Width (B) 3.000 mm
- Precision Grade Economy
- Closure Type 2GS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR95A
- Limiting Speed 42750
- Cage Type Standard
- Static Load Rating KGf 16.2
- Dynamic Load Rating KGf 41.8
- Radii 0.15 mm
- Inner Shoulder (UI) 6.00mm
- Outer Shoulder (UO) 8.20 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
