SMR85-MC3-JP6-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

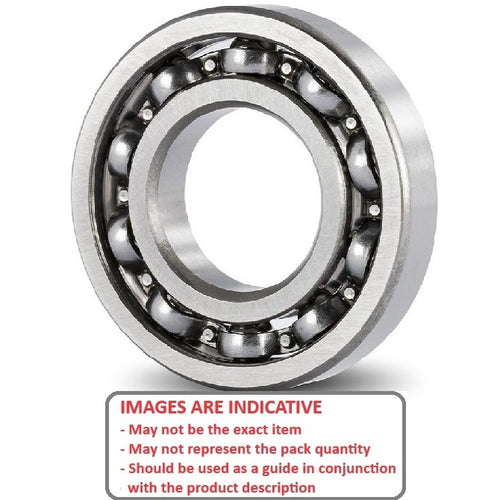

Open P6 precision bearing with low-torque cage and light oil lubricant

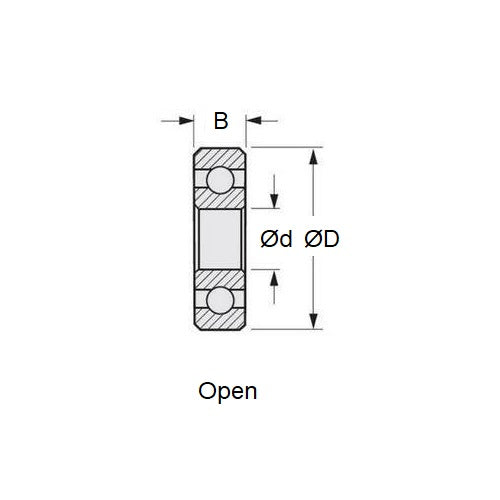

- ID (d)
:
5.000
mm
+ 0.000 / - 0.007
(Equiv. 0.197 in.) - O.D. (D)
8.000
mm
+ 0.000 / - 0.007
(Equiv. 0.315 in.) - Width (B)
2.000
mm
+ 0.000 / - 0.120
(Equiv. 0.079 in.) - Precision Grade P6
- Closure Type Open
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part MR85
- Limiting Speed 66150
- Cage Type Crown
- Static Load Rating KGf 12
- Dynamic Load Rating KGf 31
- Radii 0.10 mm
- Inner Shoulder (UI) 5.75mm
- Outer Shoulder (UO) 7.25 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- KaVo® - 13A - Bearing for Chuck End
- KaVo® - 38A - Bearing for Shaft
- KaVo® - 67RIC - Bearing for Headgear
- KaVo® - 81 - Bearing for Shaft
- KaVo® - CL09 - Bearing for Headgear
- KaVo® - CL3 - Bearing for Headgear
- Sirona® - H40L - Bearing for Shaft
- W&H® - 56A - Bearing
- W&H® - 99 - Bearing for Lower Shaft
- W&H® - ADEC - Bearing for Lower Shaft
- W&H® - HD43 - Bearing for Lower Shaft
- W&H® - WA99 - Bearing for Lower Shaft
- W&H® - WA99A - Bearing for Lower Shaft
Cross References
- Sirona® 0.220.0023
- Sirona® 0.220.0106
- KaVo® 01381900
- W&H® 01381900
- KaVo® 01565800
- Generic Dental 20023
- Generic Dental 20106
- Generic Dental 21108
- Generic Dental 21900
- KaVo® 220-0106
- Generic Dental 25800
- Aceton Satelec® 4181108
- Stainless Alternative MR85MC3JP6AF12
- Stainless Alternative MR85-MC3-JP6-AF12
- SSISO MR85P6
- SSISO MR85-P6
- 2200106
- MR85 Basic Size Ref
