FMR85A-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

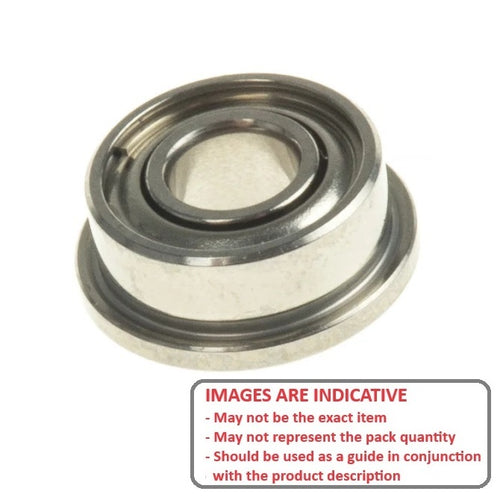

Double shielded flanged economy bearing

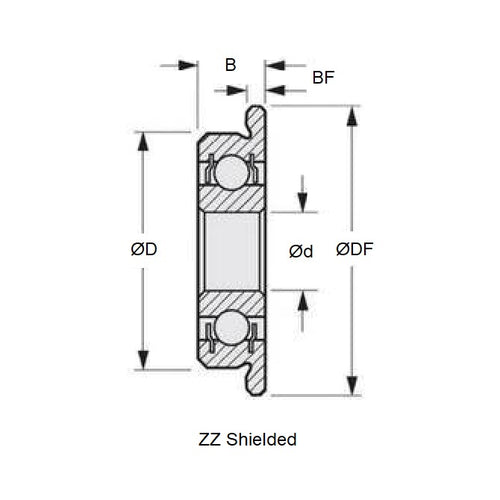

- ID (d) : 5.000 mm
- O.D. (D) 8.000 mm
- Width (B) 2.500 mm
- Flange Diameter (DF) 9.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR85A
- Limiting Speed 50350
- Cage Type Standard
- Static Load Rating KGf 8.5
- Dynamic Load Rating KGf 20.9
- Radii 0.10 mm
- Inner Shoulder (UI) 5.80mm
- Outer Shoulder (UO) 7.40 mm
- Number of Balls 9
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
