Miniature Bearings Australia
MR85A-CSN-ZZS-G90-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

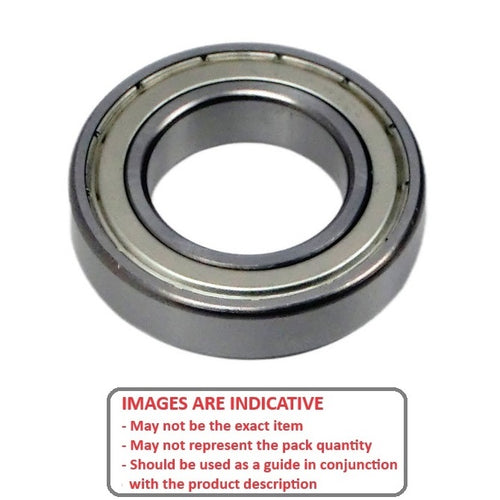

Double shielded economy ceramic-hybrid Bearing

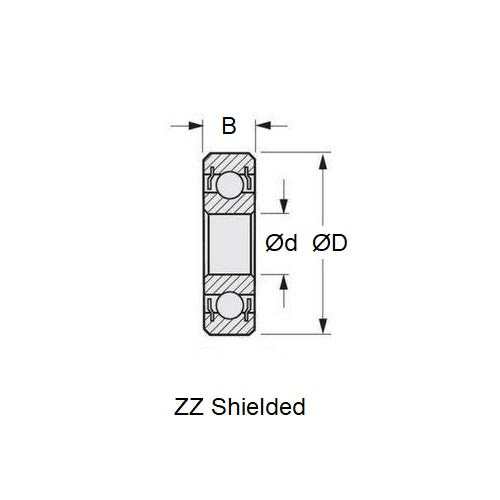

- ID (d) : 5.000 mm
- O.D. (D) 8.000 mm
- Width (B) 2.500 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Kluber Barrierta L55/2
- Basic Part MR85A
- Limiting Speed 50350
- Cage Type Standard
- Static Load Rating KGf 6.8
- Dynamic Load Rating KGf 16.7
- Radii 0.10 mm
- Inner Shoulder (UI) 5.80mm
- Outer Shoulder (UO) 7.40 mm
- Number of Balls 9
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 170 Deg. C
