DP050-018-CH-1 - Datasheet
NoCor
Category Information
Pins - Dowel - Standard - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN6325, ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.

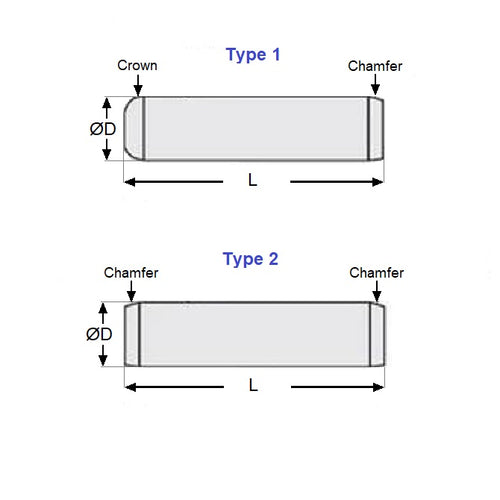

- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
5.000
mm
+ 0.004 / + 0.012
(Equiv. 0.197 in.) - Length (L)
18.00
mm
+/- 0.420
(Equiv. 0.709 in.) - Approx. Overall Length
18.00
mm
+/ - 0.420
(Equiv. 0.709 in.) - Type 1 (Chamfer One End)
- Standard Based on DIN 6325
- Material Steel 100Cr6 - Heat Treated and Ground Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWMH-050-018
- DOWMH050018
- DH5-18
- DH518
