S685-MC3-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

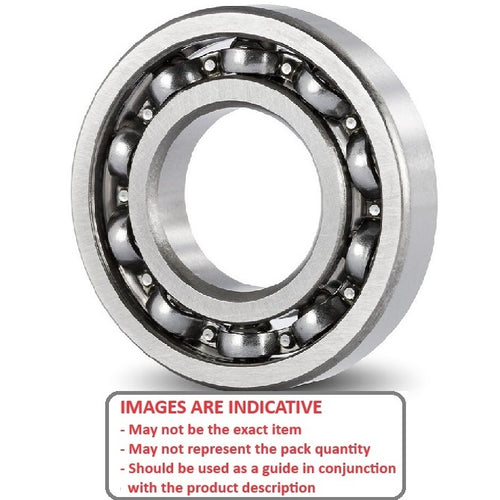

Open standard stainless steel bearing
- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - O.D. (D)
11.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.433 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 685
- Limiting Speed 53000
- Cage Type Ribbon
- Static Load Rating KGf 30
- Dynamic Load Rating KGf 73
- Radii 0.15 mm
- Inner Shoulder (UI) 6.81mm
- Outer Shoulder (UO) 9.19 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- RC Nitro Engine Parts
- GMP - Cobra - Replacement Bearing
- GMP - Competition - Replacement Bearing
- GMP - Cricket - Replacement Bearing
- GMP - Elite Rotor Head - Replacement Bearing
- GMP - Legend - Replacement Bearing
- GMP - Rebel - Replacement Bearing
- GMP - Stork - Replacement Bearing
- China Shanghai® - CS - 46 - Bearing
- China Shanghai® - CS Old - 46 - Bearing
- China Shanghai® - CS049 - Bearing
- China Shanghai® - CS049 New - Bearing
- China Shanghai® - CSG - 60 - Bearing
- Cyclone® - 7 All Models - Bearing
- Cyclone® - 90 All Models - Bearing
Cross References
- SS685MC3AF12 685
- Similar Part 685H
- Stainless 685MC3AF12
- Stainless 685-MC3-AF12
- GRW S685
- GRW SS685
- NTN® SS685
- Similar Part SS685
- MPB SSUL50C
- MPB SUL50C
- RMB® UL511X
- ADR WX5
- Similar Part WX5
- SS-L1150
- SSL1150
- DDL1150
- DD-L1150
- 685 Basic Size Ref
