CCF925RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 50.800 mm
      (Equiv. 2 in.)
    • Overall Width (D) 33.325 mm
      (Equiv. 1.312 in.)
    • Bore (B) 15.875 mm
      (Equiv. 0.625 in.)
    • Width (C) 31.750 mm
    • Crown Radius 24.000 deg
    • E 38.100 mm
    • Dynamic Load Rating 3669.562 kg
    • Static Load Rating 9588.943 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K22
      • CCF925
      • CCF-925
      View full details

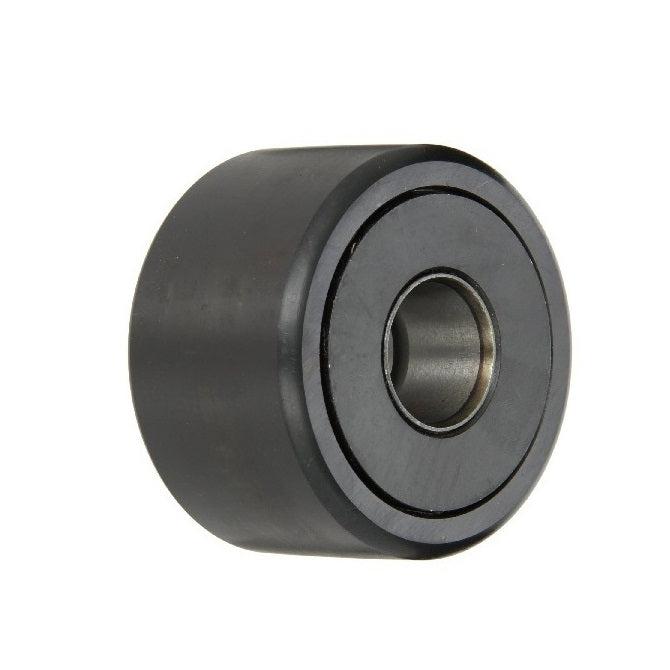

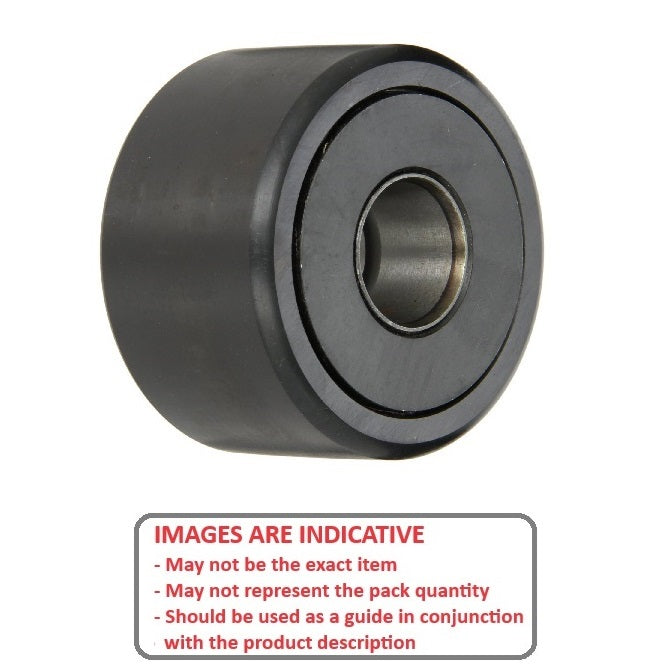

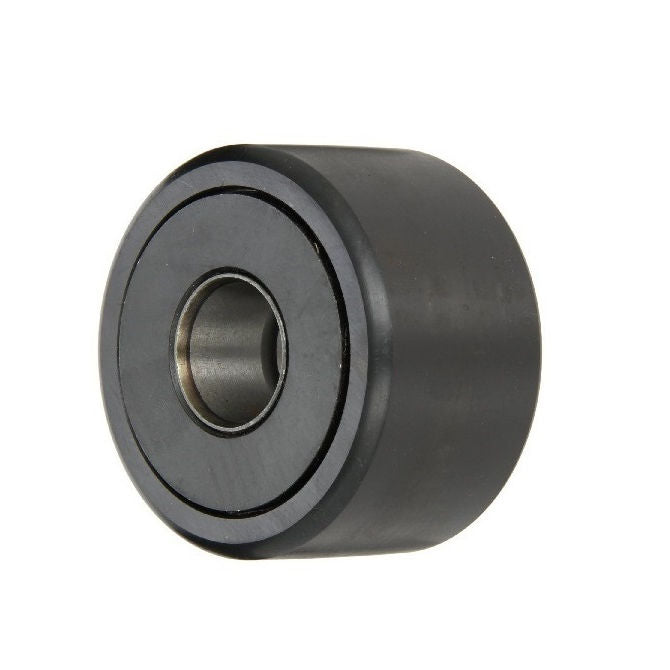

      CCF925RSDiagramCCF925RSImage
