Miniature Bearings Australia
EB-180RS - Datasheet
MBA
Category Information

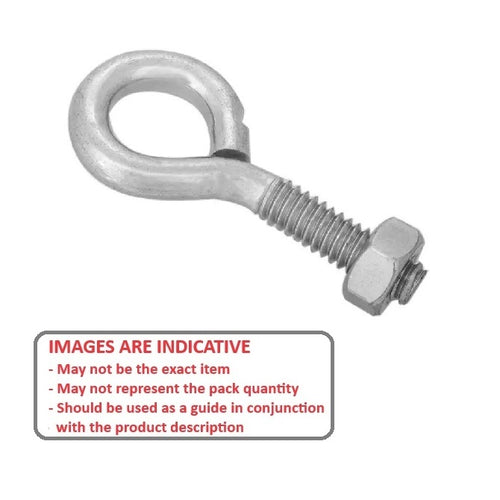

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.

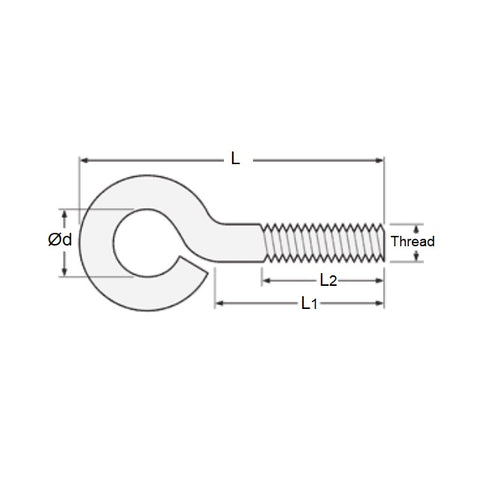

Product Data
- Thread : 5/8-11 UNC (15.88mm)
- Overall Length
127.000
mm
(Equiv. 5 in.) - Shank Length
44.450
mm
(Equiv. 1.75 in.) - Thread Length 15.875 mm
- Eye Inside Diameter 15.875 mm
