CHE-74RS - Datasheet

MBA

Category Information

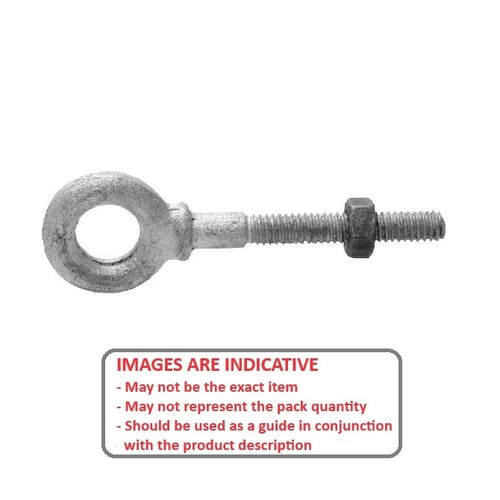

Eye Bolts - Partial Threaded Shank - Shouldered - Carbon Steel

Carbon Steel Shouldered Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.

  • Fastener with a loop or eye at one end, and a partial threaded shank on the other.
  • Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
  • Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

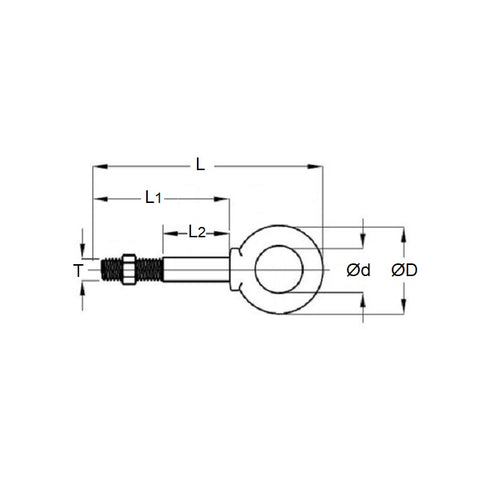

Product Data

  • Thread Size : 5/8-11 UNC (15.88mm)
  • Shank Length 114.300 mm
    (Equiv. 4.5 in.)
  • Eye Inside Diameter 31.750 mm
    (Equiv. 1.25 in.)
  • Rated Capacity 1588 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3018T43
