Miniature Bearings Australia
NT032C-NI-CS - Datasheet
MBA
Category Information
Nuts - Hexagonal - Nylon Insert - SteelSteel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.

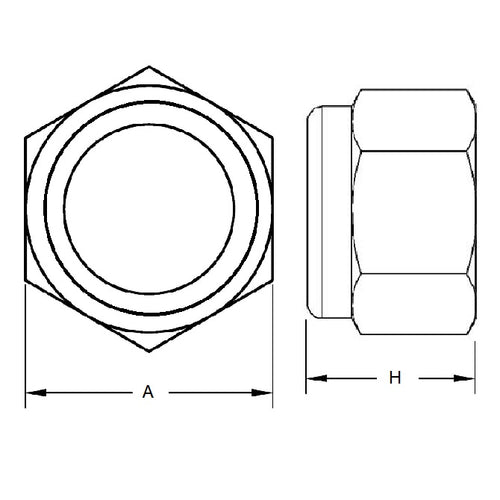

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data

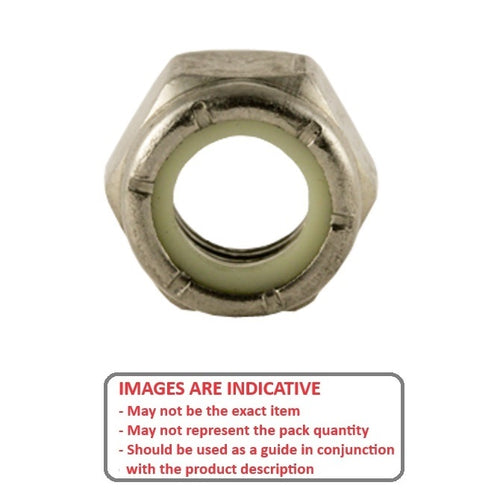

Deleted Item. Available while stocks last. Steel nuts with nyloc locking insert
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 5-40 UNC (3.18mm)
- Thickness (H) 3.7 mm
- Across Flats (A/F) 6.4 mm
- 3.7
- Type Standard
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Steel - Plated
Product Compliance and Data
Additional Resources
Applications & Uses
- RC Car Parts
- Team Associated® - RC10 - T3 1/10 - Replacement Locknut
Cross References
- Associated® 6629
- 90631A006
- MicroFast® NI0540
