Miniature Bearings Australia
ORB-00523-262-S70-107-R - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber BulkSilicone Rubber Bulk O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Silicone O-Rings have high thermal resistance and cold flexibility.
- Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.
Product Data

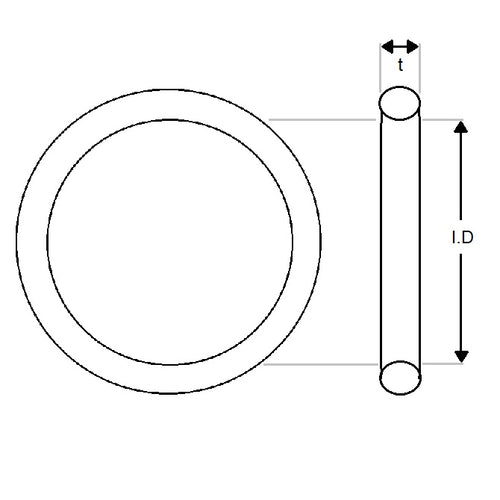

- Inside Diameter (ID)
:
5.23
mm
(Equiv. 0.206 in.) - Section (t)
2.62
mm
(Equiv. 0.103 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- OR00523262S70107R
- OR-00523-262-S70-107-R
