Miniature Bearings Australia
KM079C-032-7L40-ST - Datasheet
MBA
Category Information

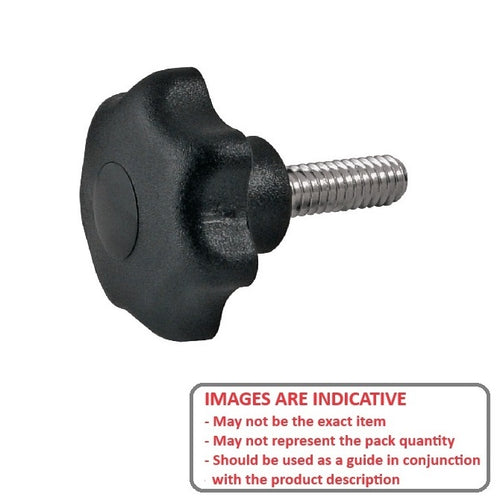

Knobs - Lobe - Seven Lobe - Male - StandardStandard Male Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

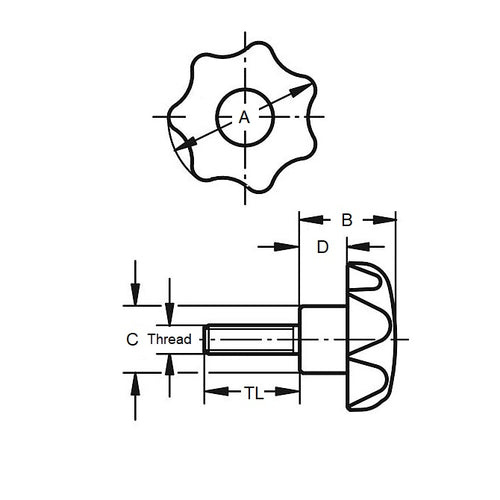

- Thread Size : 5/16-18 UNC (7.94mm)
- Head Diameter (A) 32.00 mm
- Thread Length 40.0 mm
- Colour Black
- Hub Diameter (C) 13.97 mm
- Hub Length (D) 9.91 mm
- Knob Height (B) 20.07 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- KaVo® KBP-269
- KBP269
