SC079C-038-C-SK-C-NT - Datasheet
MBA
Category Information

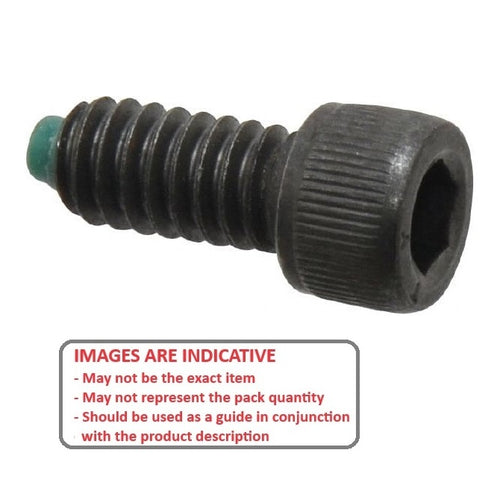

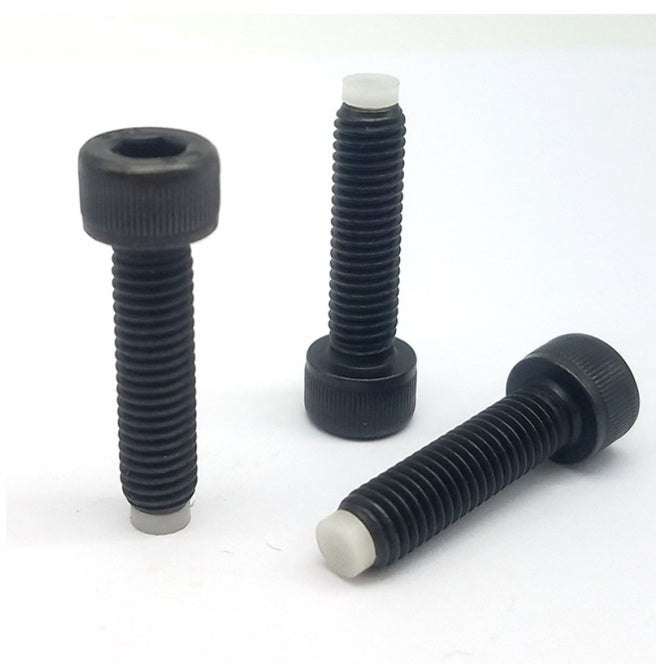

Screws - Cap Tipped - Socket - Alloy Steel - Nylon TipNylon Tip Alloy Steel Socket Cap Tipped Screws. Nylon tipped socket cap screws in alloy steel
- Socketed cap head screws with a soft tip end.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

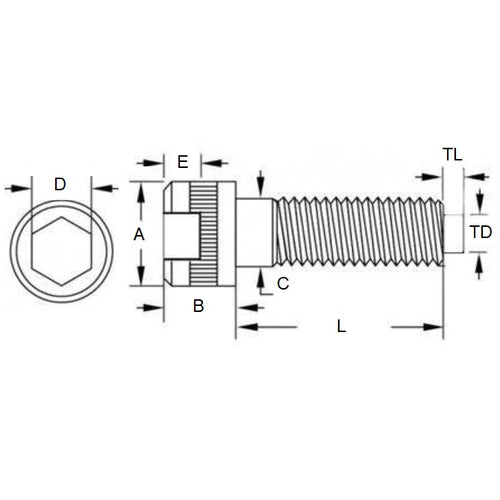

- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Tip Diameter
4.80
mm
(Equiv. 0.189 in.) - Tip Length 1.57 mm
- Head Length (B Max.) 7.94 mm
- Head Diameter (A Max.) 11.89 mm
- 7.78 - 7.94
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90303A440
- TNT245
- TNT-245
