Miniature Bearings Australia
EB-115RS - Datasheet
MBA
Category Information

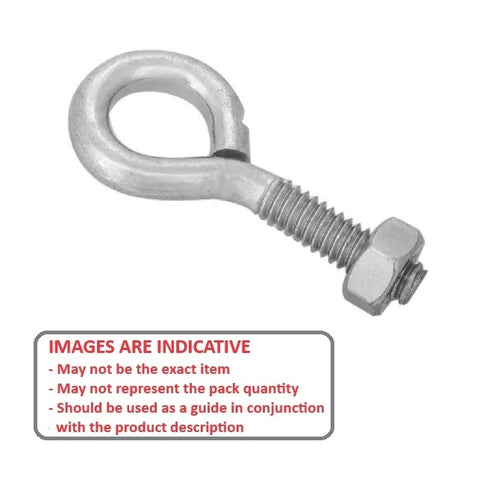

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.
Product Data

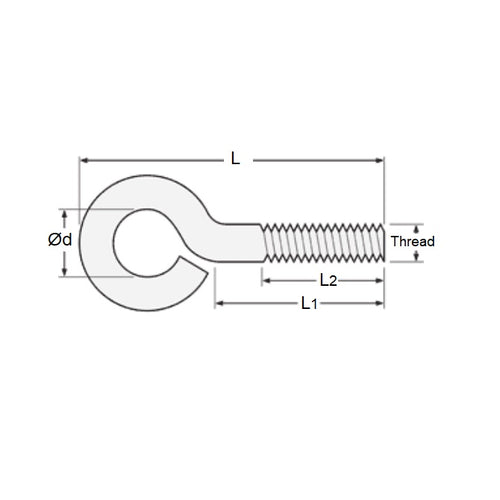

- Thread : 5/16-18 UNC (7.94mm)
- Overall Length
88.900
mm
(Equiv. 3.5 in.) - Shank Length
38.100
mm
(Equiv. 1.5 in.) - Thread Length 7.925 mm
- Eye Inside Diameter 6.350 mm
- Material Stainless Steel
