IN-TP-0794C-250-WHF - Datasheet
MBA
Category Information

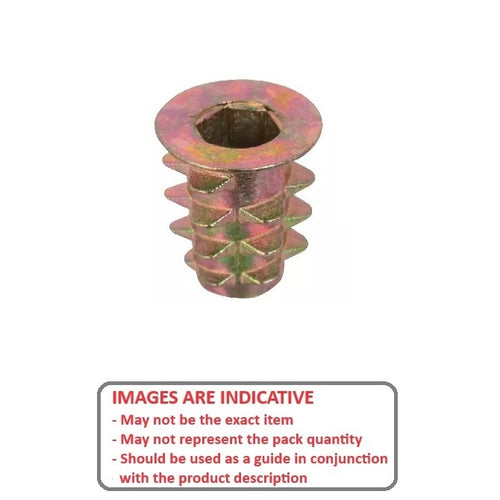

Inserts - Self Tapping - For Wood - Hex Drive - FlangedFlanged Hex Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.
- Die Cast Zinc Alloy. Knife thread cuts easily into a predrilled hole.
- Inexpensive inserts for use in ready to assemble furniture, drawer pulls etc.
- Installs with a hex wrench

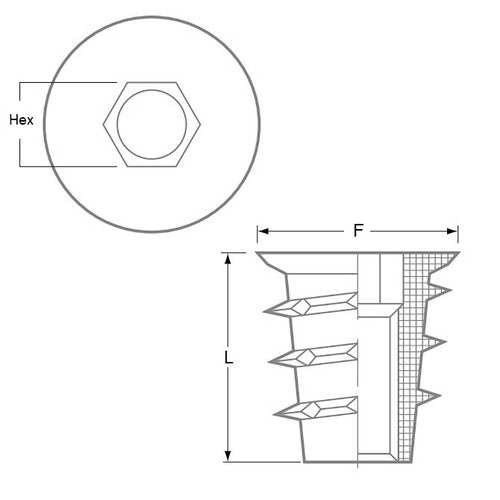

Product Data
- Internal Thread : 5/16-18 UNC (7.94mm)
- Rec. Hole Diameter
11.0
mm
(Equiv. 0.433 in.) - Length (L)
24.994
mm
(Equiv. 0.984 in.) - Hex Size 8.0
Product Compliance and Data
Additional Resources
Cross References
- 92105A415
- EZ120
- EZ-120
