SMR74A-CSN-2RY-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

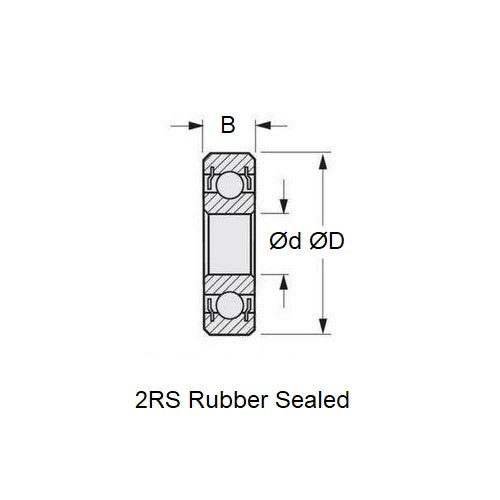

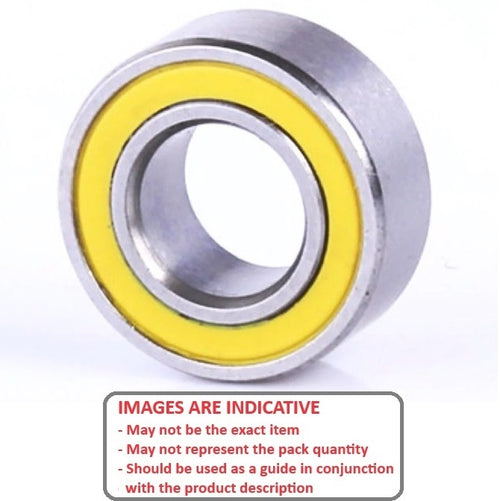

Double black rubber sealed economy stainless ceramic-hybrid bearing
- ID (d) : 4.000 mm
- O.D. (D) 7.000 mm
- Width (B) 2.500 mm
- Precision Grade Economy
- Closure Type 2YS
- Bearing Type Radial
- Material Stainless Steel AISI 440C - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR74A
- Limiting Speed 38760
- Cage Type Standard
- Static Load Rating KGf 8.4
- Dynamic Load Rating KGf 19.8
- Radii 0.10 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 6.30 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RY
- Max Temperature 80 Deg. C
