Miniature Bearings Australia
RP040-0140-C - Datasheet
MBA
Category Information

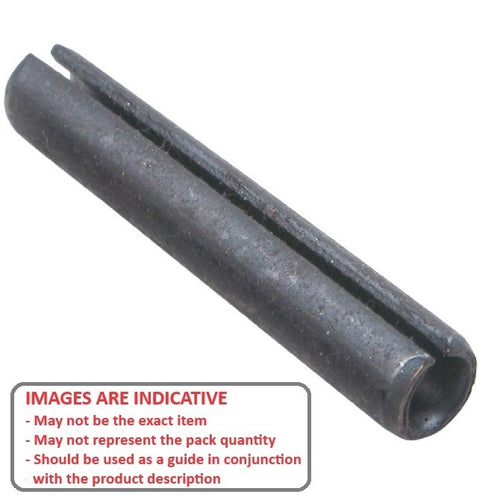

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

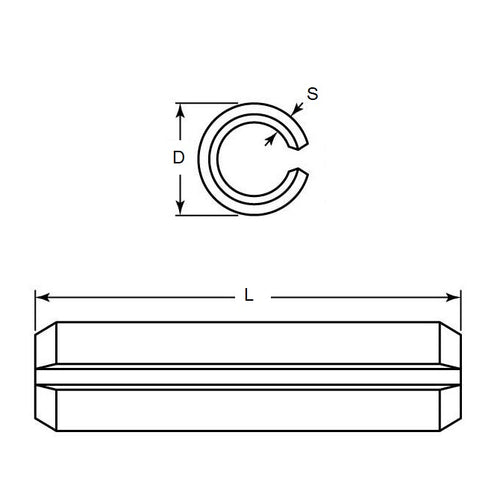

Product Data
- Nominal Diameter (D) : 4.00 mm
- Length (L) 14.00 mm
- Free Diameter 4.40 mm
- Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802219
- 91611A206
- NoCor® SPM-040-014
- NoCor® SPM-040-014-A
- Huyett® SPM-040-014-I
- NoCor® SPM-040-014-I
- NoCor® SPMP-040-014
- Brighton Best® Spring-Pin-M4x14
- SAP4-14
- SAP414
- SpringPinM4x14
- MD1481MQB040X014
- SPMP040014
- SPM040014I
- SPM040014A
