FRB-90RS - Datasheet

MBA

Category Information

Bumpers - Square and Rectangular - Standard

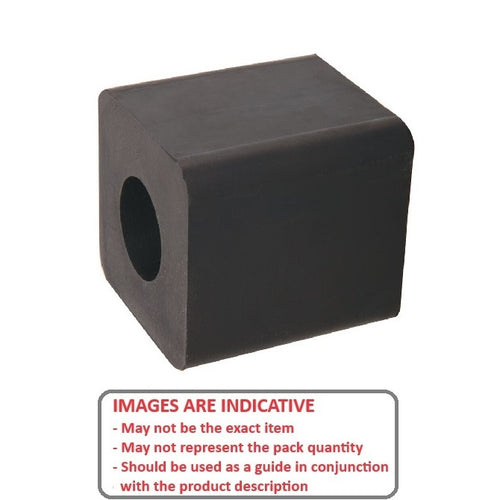

Standard Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Neoprene only, no steel plate.

  • Square and rectangular shape bumpers, used to provide a protective cushion, prevent slipping, dampen vibrations, or absorb shock.
  • Commonly used for furniture, electronics, and industrial equipment. Can be attached using adhesive, screws, or other mounting hardware.

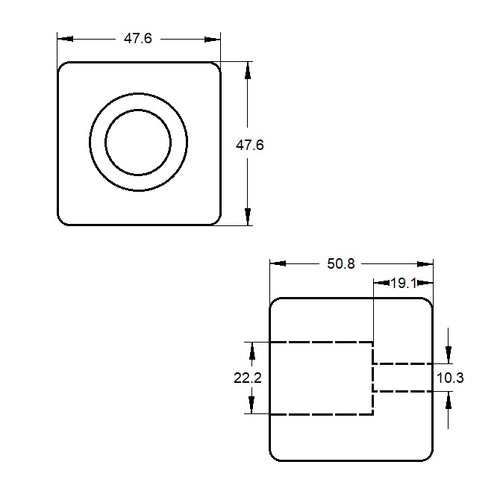

Product Data

  • Length : 47.625 mm
    (Equiv. 1.875 in.)
  • Width 50.800 mm
    (Equiv. 2 in.)
  • Height 47.625 mm
    (Equiv. 1.875 in.)
  • Hole Diameter 22.225 mm
  • Hole Depth 31.750
  • Hardness 80A
  • Material Neoprene Rubber 80A
Country of Origin: US
