CCF910RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 41.275 mm
      (Equiv. 1.625 in.)
    • Overall Width (D) 23.800 mm
      (Equiv. 0.937 in.)
    • Bore (B) 11.113 mm
      (Equiv. 0.438 in.)
    • Width (C) 22.225 mm
    • Crown Radius 20.000 deg
    • E 28.575 mm
    • Dynamic Load Rating 2195.387 kg
    • Static Load Rating 5116.522 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K18
      • CCF910
      • CCF-910
      View full details

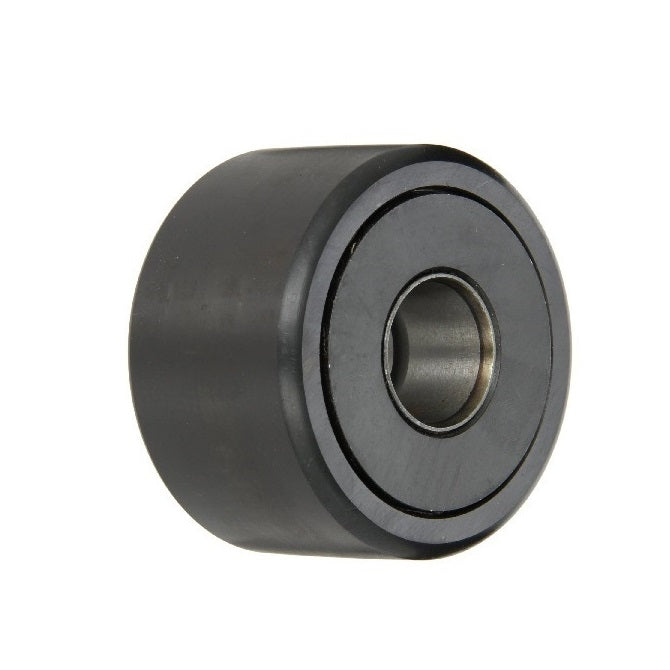

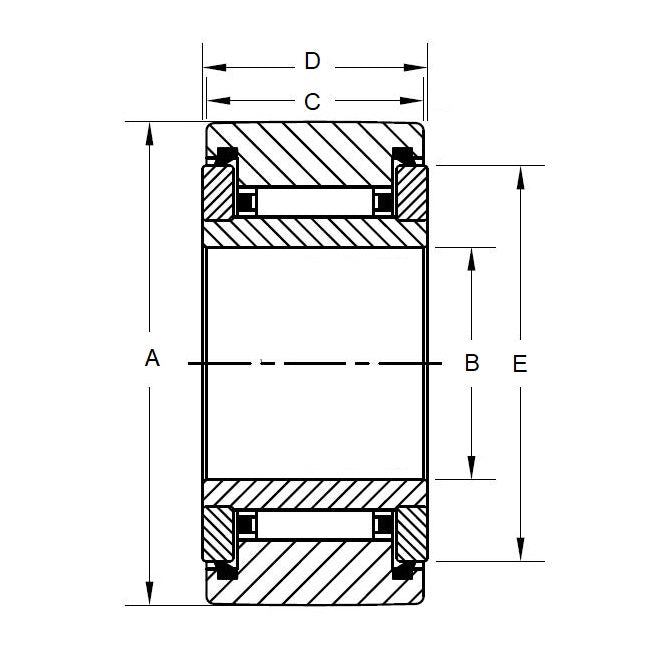

      CCF910RSDiagramCCF910RSImage
