R166-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

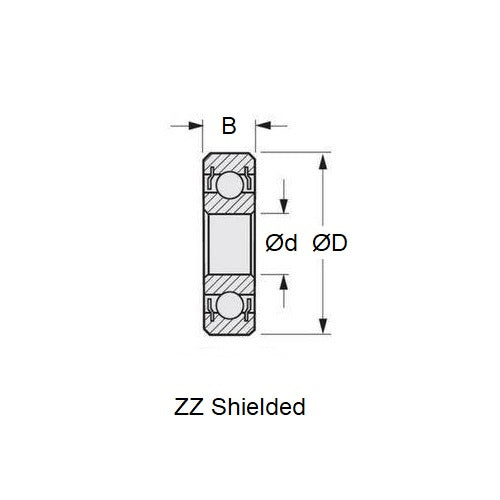

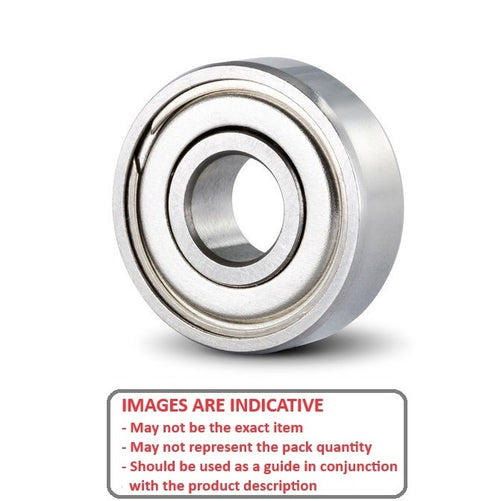

Double shielded economy bearing
- ID (d) : 4.763 mm
- O.D. (D) 9.525 mm
- Width (B) 3.175 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R166
- Limiting Speed 47500
- Cage Type Standard
- Static Load Rating KGf 26.6
- Dynamic Load Rating KGf 68.4
- Radii 0.10 mm
- Inner Shoulder (UI) 5.95mm
- Outer Shoulder (UO) 8.80 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Cobra® - Nemesis - Replacement Bearing
- Custom Works® - Enforcer GBX - Replacement Bearing
- Custom Works® - Enforcer GSX - Replacement Bearing
- Custom Works® - Intimidator - Replacement Bearing
- Custom Works® - Intimidator GBX RC - Replacement Bearing
- Custom Works® - Intimidator Nitro GSX - Replacement Bearing
- Duratrax® - Evader Buggy - Replacement Bearing
- Duratrax® - Evader BX - Replacement Bearing
- Duratrax® - Evader BX Nitro - Replacement Bearing
- Duratrax® - Evader BX Pro RTR Electric - Replacement Bearing
- Duratrax® - Evader ST - Replacement Bearing
- Duratrax® - Evader ST Nitro - Replacement Bearing
- Duratrax® - Evader ST Pro RTR - Replacement Bearing
- Duratrax® - Hyper-10 - Replacement Bearing
- Duratrax® - LXT Gas Conversion - Replacement Bearing
- Duratrax® - RC10T Gas Conversion - Replacement Bearing
- FSR - Bullet Electric - Replacement Bearing
- FSR - Bullet Modified Losi - Replacement Bearing
- HPI - RS4 Nitro Rush - Replacement Bearing
- HPI - Rush Evo - Replacement Bearing
- J Concepts - BJ4 - Replacement Bearing
- Kyosho® - GP Ultima® RB RTR - Replacement Bearing
- Kyosho® - Ultima® ST EP Sports - Replacement Bearing
- Kyosho® - Ultima® ST GP Evolution Type R - Replacement Bearing
- Kyosho® - Ultima® ST GP Sports - Replacement Bearing
- Kyosho® - Ultima® ST Truck - Replacement Bearing
- Kyosho® - Ultima® ST Truck With Steering - Replacement Bearing
- Mugen® - MST-1 1/10 Gas Truck With Clutch - Replacement Bearing
- Sport Werks® - Raven ST - Replacement Bearing
- Team Associated® - B4 Factory Team - Replacement Bearing
- Team Associated® - B4 RTR - Replacement Bearing
- Team Associated® - B4 SE Electric Off Road - Replacement Bearing
- Team Associated® - B4 Stealth Buggy - Replacement Bearing
- Team Associated® - GT-2RS - Replacement Bearing
- Team Associated® - Nitro TC3 - Replacement Bearing
- Team Associated® - Nitro TC3 RTR - Replacement Bearing
- Team Associated® - Nitro TC3 RTR Plus On Road - Replacement Bearing
- Team Associated® - Nitro TC3 With Steering - Replacement Bearing
- Team Associated® - RC10 - T3 1/10 - Centre Gear Bearing 3/16x3/8mm
- Team Associated® - RC10 - T3 1/10 - Front Wheel Bearing 3-16-3-8mm
- Team Associated® - RC10 - T3 1/10 - Gear Bearing 3-16-3-8mm
- Team Associated® - RC10 - T3 1/10 - Rear Wheel Bearing 3-16-3-8mm
- Team Associated® - RC10 Champion Series - Replacement Bearing
- Team Associated® - RC10 Champion W-Stealth World Car - Replacement Bearing
- Team Associated® - RC10 Championship Edition - Replacement Bearing
- Team Associated® - RC10 Championship Edition With STE - Replacement Bearing
- Team Associated® - RC10 Team Car - Replacement Bearing
- Team Associated® - RC10 World Car - Replacement Bearing
- Team Associated® - RC10B2 - Replacement Bearing
- Team Associated® - RC10B3 - Replacement Bearing
- Team Associated® - RC10B3 Sport - Replacement Bearing
- Team Associated® - RC10B4 - Replacement Bearing
- Team Associated® - RC10DS - Replacement Bearing
- Team Associated® - RC10GT Factory Team Nitro Off Road - Replacement Bearing
- Team Associated® - RC10GT Factory Team With Clutch Bell - Replacement Bearing
- Team Associated® - RC10GT Old Nitro Off Road - Replacement Bearing
- Team Associated® - RC10GT RTR - Replacement Bearing
- Team Associated® - RC10GT RTR With Clutch Bell - Replacement Bearing
- Team Associated® - RC10GT Special With Clutch Bell - Replacement Bearing
- Team Associated® - RC10GT/ST Team Truck - Replacement Bearing
- Team Associated® - RC10T - GT10 Truck - Wheel Bearing 3-16-3-8mm
- Team Associated® - RC10T Truck - Replacement Bearing
- Team Associated® - RC10T2 Sport - Replacement Bearing
- Team Associated® - RC10T2 Truck - Replacement Bearing
- Team Associated® - Stealth Trans - Replacement Bearing
- Team Associated® - Team Car - Replacement Bearing
- Team Losi® - DoubleX Buggy - Replacement Bearing
- Team Losi® - DoubleX Truck - Replacement Bearing
- Team Losi® - GTX Gas TRK - Replacement Bearing
- Team Losi® - JR T Trans - Replacement Bearing
- Team Losi® - JRX2 - Replacement Bearing
- Team Losi® - JRX2 Truck LX-T - Replacement Bearing
- Team Losi® - JRX-S 4 Wheel Sedan - Replacement Bearing
- Team Losi® - JRXT Truck - Replacement Bearing
- Team Losi® - Junior 2 - T - Replacement Bearing
- Team Losi® - LX-T - Replacement Bearing
- Team Losi® - NXT - Replacement Bearing
- Team Losi® - Rally Street Weapon - Replacement Bearing
- Team Losi® - Street Weapon - Replacement Bearing
- Team Losi® - XX - XXCR - XXT CR - Belt Transmission Slipper Bearing 3-16-3-8mm
- Team Losi® - XX - XXCR - XXT CR - Rear Wheel Bearing
- Team Losi® - XX - XXCR - XXT CR - Transmission Bearing
- Team Losi® - XX4 - Rear Wheel Bearing 3-16-3-8mm
- Team Losi® - XXX-2WD Off-Road Racing Buggy - Replacement Bearing
- Team Losi® - XXX4 - Replacement Bearing
- Team Losi® - XXX-BK2 Racer - Replacement Bearing
- Team Losi® - XXX-Buggy - Replacement Bearing
- Team Losi® - XXX-Kinwald Graphite Edition - Replacement Bearing
- Team Losi® - XXX-NT AD Version - Replacement Bearing
- Team Losi® - XXX-NT Sport - Replacement Bearing
- Team Losi® - XXX-S - Replacement Bearing
- Team Losi® - XXX-T MF2 Sports - Replacement Bearing
- Trinity® - Reflex 10 - Replacement Bearing
- XTM Racing - Nitro X-Cellerator Racer - Replacement Bearing
- XTM Racing - Nitro X-Cellerator RTR 2WD - Replacement Bearing
- XTM Racing - X-Cellerator Stadium Truck RTR - Replacement Bearing
- XTM Racing - X-Cellerator EP RTR - Replacement Bearing
Cross References
- Associated® 3977
- Associated® 6599
- Associated® 6906
- Associated® 6906 / 6599
- Associated® 6906 / 6599/7360
- Associated® 7360
- R166
- R166 Basic Size Ref
