MAG-S-05-013-AN - Datasheet
MBA
Category Information

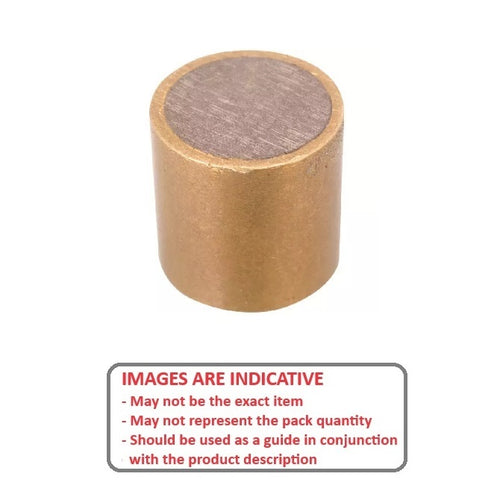

Magnets - Shielded AlnicoShielded Alnico Magnets. This is the main category in this series
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

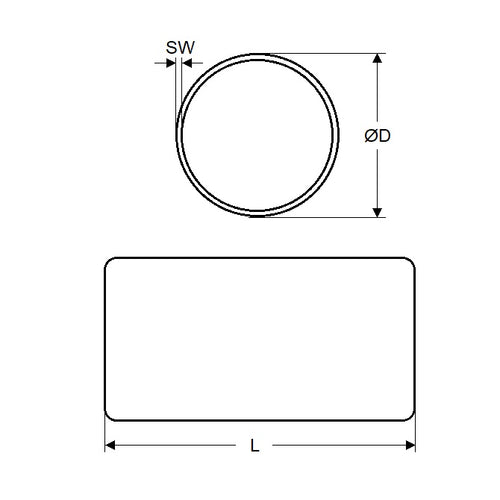

- Diameter (A)
:
4.76
mm
(Equiv. 0.187 in.) - Length (B)
12.7
mm
(Equiv. 0.5 in.) - Sidewall Thickness
0.46
mm
(Equiv. 0.018 in.) - Max Pull 0.04 kg
Product Compliance and Data
Additional Resources
Cross References
- IM39
- IM-39
