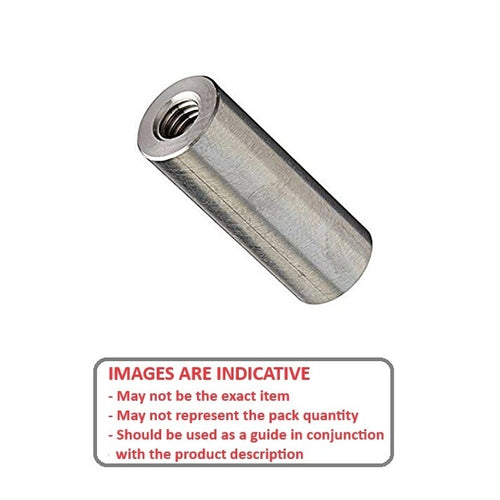

SRD-T-0285C-05-006-S3 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

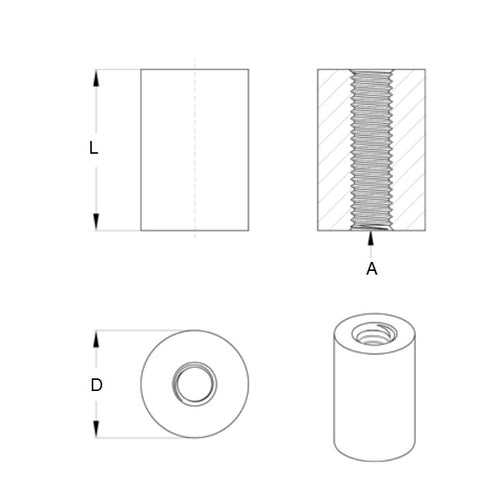

• Thread Size : 4-40 UNC (2.85mm)
• O.D. (D) 4.762 mm
• Length (L) 6.35 mm
• Material Stainless Steel Grade 303/304 HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• A 9X43-A44008
• A9X43-A44008
• A9X43A44008
