Miniature Bearings Australia
RP030-0080-C - Datasheet
MBA
Category Information

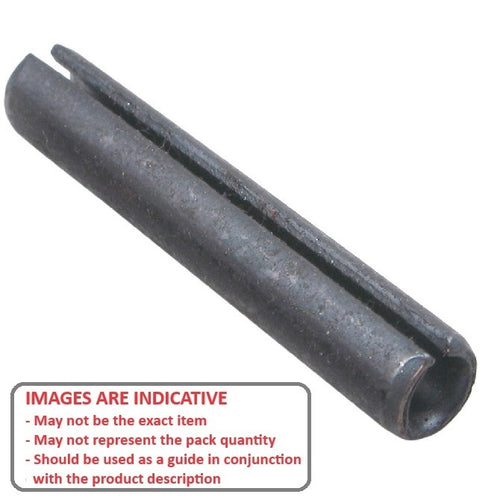

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

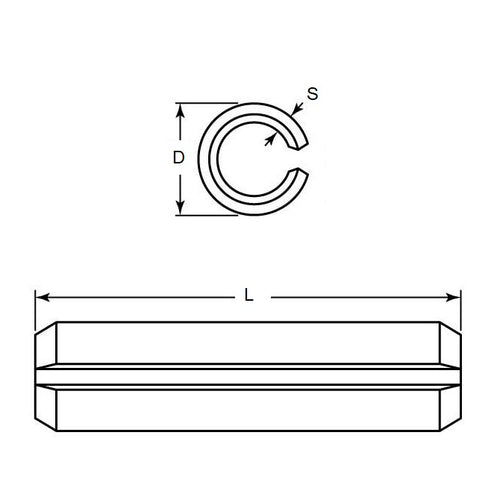

- Nominal Diameter (D) : 3.00 mm
- Length (L) 8.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802102
- 91611A153
- NoCor® SPM-030-008
- Huyett® SPM-030-008-I
- NoCor® SPM-030-008-I
- NoCor® SPMP-030-008
- Brighton Best® Spring-Pin-M3x8
- SAP3-8
- SAP38
- SpringPinM3x8
- MD1481MQB030X008
- SPM030008
- SPM030008I
- SPMP030008
