SF683A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Single row radial ball bearings with flanges.
Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

Double shielded flanged stainless steel bearing

ID (d) : 3.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.118 in.)
O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.276 in.)
Width (B) 3.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.118 in.)
Flange Diameter (DF) 8.100 mm
Flange Width (BF) 0.800 mm
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial Flanged
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part F683A
Limiting Speed 63000
Cage Type Standard
Static Load Rating KGf 11
Dynamic Load Rating KGf 32
Radii 0.10 mm
Inner Shoulder (UI) 3.85mm
Outer Shoulder (UO) 6.35 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Helicopter Parts
Thunder Tiger® - EK-4 S2 Sport 1/8 Scale - Replacement Bearing
Century® - Ninja Pro® 30/46 All - Replacement Bearing
Century® - Ninja Pro® 30/46Upgrade Kit - Replacement Bearing
Century® - Ninja Pro® 30-46 - Replacement Bearing
Century® - Predator 60/70 - Replacement Bearing
Hirobo® - Shuttle - Upgrade Kit Replacement Bearing
Hirobo® - Shuttle XX - 2500-072 Replacement Bearing
Hirobo® - Shuttle XX - Replacement Bearing
Hirobo® - Shuttle Z - 2500-072 Replacement Bearing
Hirobo® - Shuttle Z - Replacement Bearing
Hirobo® - Shuttle ZX - 2500-072 Replacement Bearing
Hirobo® - Shuttle ZX - Replacement Bearing
Hirobo® - Shuttle ZX-0402 Upgrade Kit - Replacement Bearing
Hirobo® - SST Eagle Freya - Replacement Bearing
Hirobo® - Tsurgi - 2500-072 Replacement Bearing
Ikarus® - ECO - Replacement Bearing
Ikarus® - ECO 8 Electric Heli - Replacement Bearing
Ikarus® - ECO 8 Electric Heli Full Kit With ALU - Replacement Bearing
Ikarus® - ECO Piccolo - Replacement Bearing
Ikarus® - ECO Piccolo V2 - Replacement Bearing
Ikarus® - Fun Piccolo - Replacement Bearing
Ikarus® - Piccolo - Replacement Bearing
Schluter® - Eolo Pro - Replacement Bearing
Schluter® - Eolo Spirit Pro - Replacement Bearing
Schluter® - Spirit Pro - Replacement Bearing

Cross References

View full details

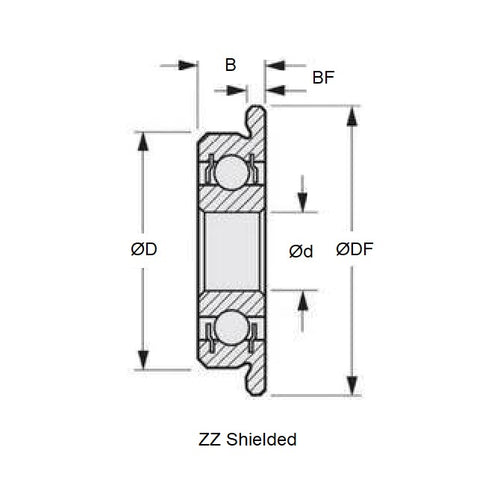

SF683A-ZZ-MC3Diagram

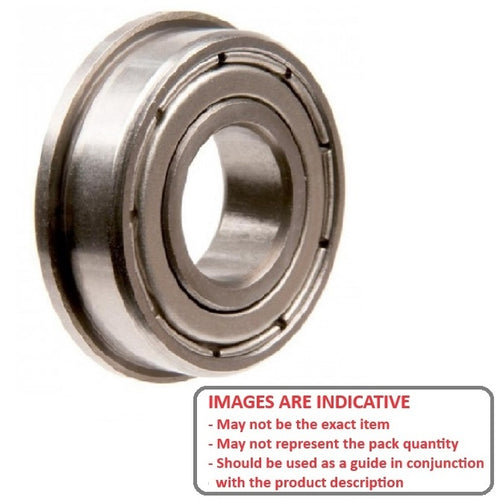

SF683A-ZZ-MC3Image
