S683-MC3-JP6-AF12 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

Open P6 precision bearing with low-torque cage and light oil lubricant

ID (d) : 3.000 mm _{+ 0.000 / - 0.007}
(Equiv. 0.118 in.)
O.D. (D) 7.000 mm _{+ 0.000 / - 0.007}
(Equiv. 0.276 in.)
Width (B) 2.000 mm _{+ 0.000 / - 0.120}
(Equiv. 0.079 in.)
Precision Grade P6
Closure Type Open
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Oil
Lubrication Name AF12 Aeroshell Fluid 12
Basic Part 683
Limiting Speed 78750
Cage Type Standard
Static Load Rating KGf 11
Dynamic Load Rating KGf 32
Radii 0.10 mm
Inner Shoulder (UI) 4.28mm
Outer Shoulder (UO) 5.75 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade P6
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

Dental Handpiece Parts
KaVo® - 2307LN - Bearing for Shaft
KaVo® - 2313LN - Bearing for Shaft
KaVo® - 2325L - Bearing for Shaft
KaVo® - 3640L - Bearing for Shaft
KaVo® - 68LH - Replacement Rear Bearing
KaVo® - C09 - Bearing for Shaft
KaVo® - E40 - Bearing for Shaft
MK-Dent® - LE148L - Bearing for Shaft
MK-Dent® - LE74L - Bearing for Shaft
NSK® - SGR2E - Bearing for Shaft
NSK® - SGT2E1 - Bearing for Shaft
Sirona® - C 1.6 - Bearing for Drive
Sirona® - C 1.6 Serial Number Over 65 000 - Bearing for Drive
Sirona® - C40 - Replacement Rear Bearing
W&H® - 969 - Bearing for Lower Shaft
W&H® - 999 - Bearing for Lower Shaft
W&H® - WA56 - Bearing for Lower Shaft
W&H® - WD66 - Bearing for Lower Shaft
W&H® - WD969 - Bearing for Lower Shaft
W&H® - WD999 - Bearing for Lower Shaft
W&H® - WP64 - Bearing for Lower Shaft

Cross References

View full details

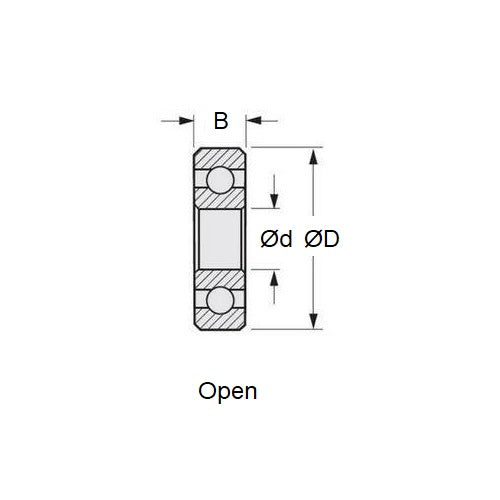

S683-MC3-JP6-AF12Diagram

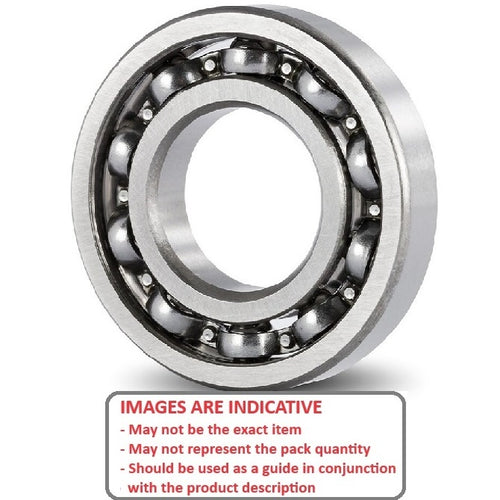

S683-MC3-JP6-AF12Image
