Miniature Bearings Australia
RP030-0220-420 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

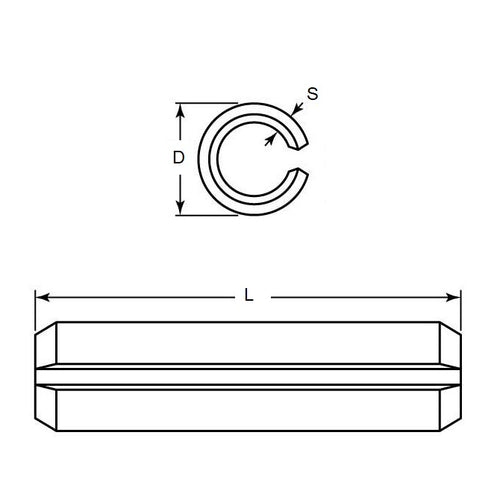

Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 22.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.60 mm
- Chamfer Length (cL) 0.50-0.70 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMS-030-022
- NoCor® SPMS-030-022-420SS
- Huyett® SPMSP-030-022-A
- NoCor® SPMSP-030-022-A
- MD1481MXO030X022
- SPMS030022420SS
- SPMSP030022A
