RP030-0180-C - Datasheet

Brighton Best

Category Information

Pins - Roll - Carbon Steel

Carbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

  • Nominal Diameter (D) : 3.00 mm
  • Length (L) 18.00 mm
  • Free Diameter 3.30 mm
  • Thickness (S) 0.60 mm
  • Chamfer Length (cL) 0.50-0.70 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Carbon Steel CS70
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best® 802117
  • 91611A158
  • NoCor® SPM-030-018
  • NoCor® SPMP-030-018
  • Brighton Best® Spring-Pin-M3x18
  • SAP318
  • SAP3-18
  • SpringPinM3x18
  • MD1481MQB030X018
  • SPMP030018
  • SPM030018
View full details

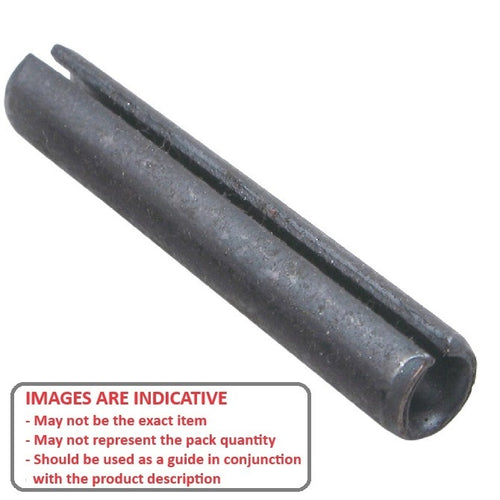

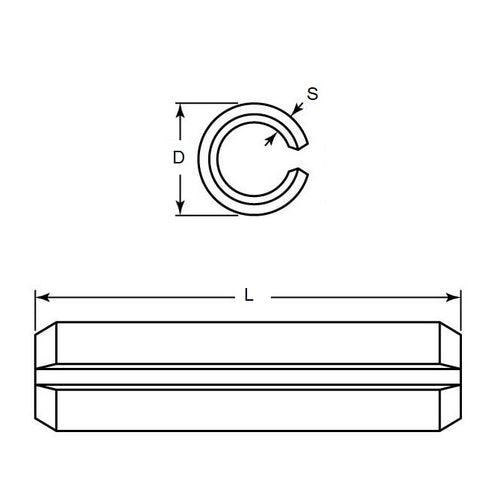

RP030-0180-CDiagramRP030-0180-CImage
