RP030-0140-Z - Datasheet
Brighton Best
Category Information

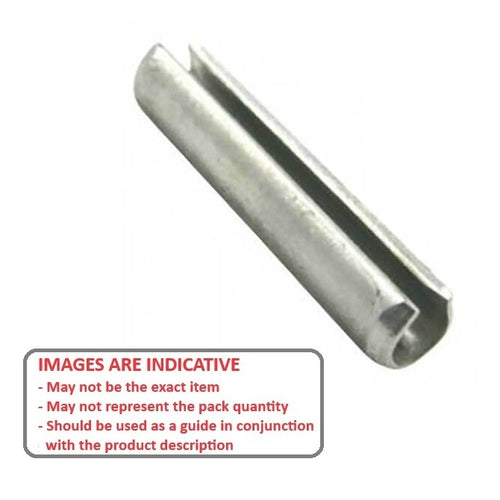

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

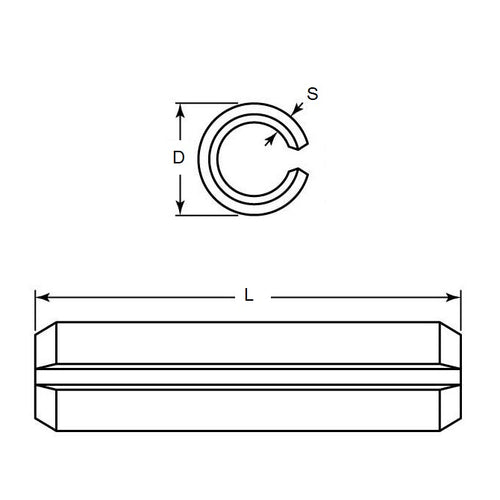

- Nominal Diameter (D) : 3.00 mm
- Length (L) 14.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.65 mm
- Chamfer Length (cL) 0.20-1.00 mm
- Chamfer Diameter (cD) 2.9 mm
- Standard B18.8.4M
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMZ-030-014
- Brighton Best® V81111
- SPMZ030014
