RP030-0100-Z - Datasheet
MBA
Category Information

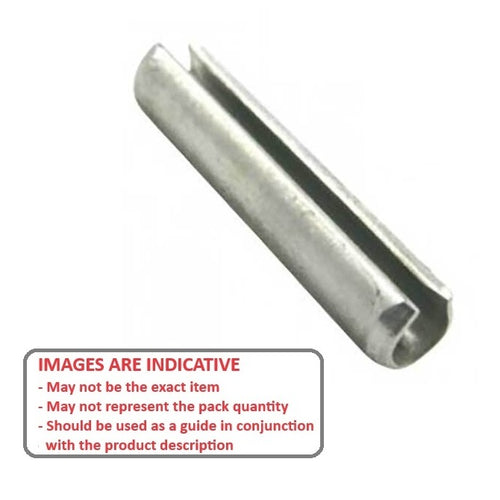

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

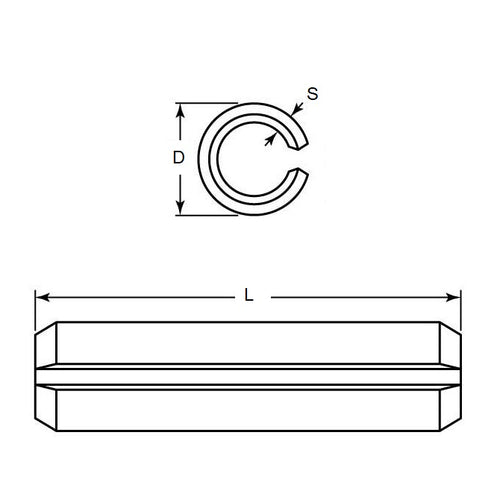

Product Data
- Nominal Diameter (D) : 3.00 mm
- Length (L) 10.00 mm
- Free Diameter 3.30 mm
- Thickness (S) 0.65 mm
- Chamfer Length (cL) 0.20-1.00 mm
- Chamfer Diameter (cD) 2.9 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMZ-030-010
- Huyett® SPMZ-030-010-A
- NoCor® SPMZ-030-010-A
- Brighton Best® V81105
- SPMZ030010A
