0R-0381-0229-ALCT-T40 - Datasheet
MBA
Category Information

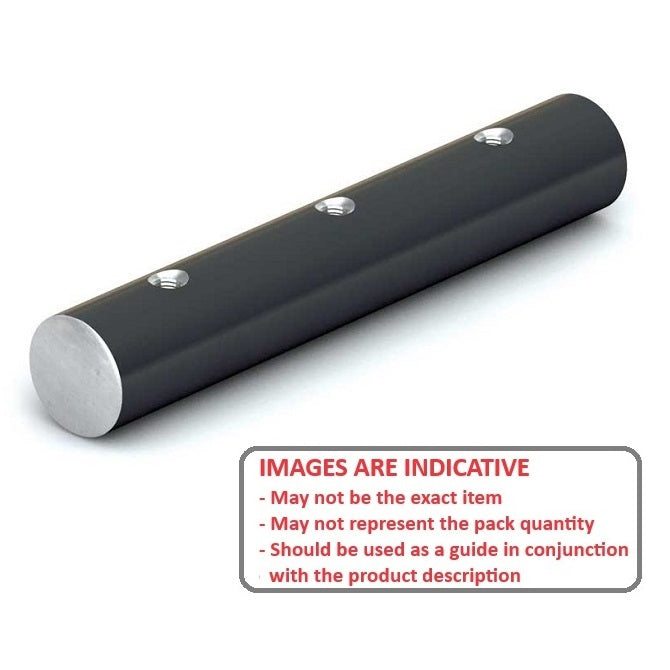

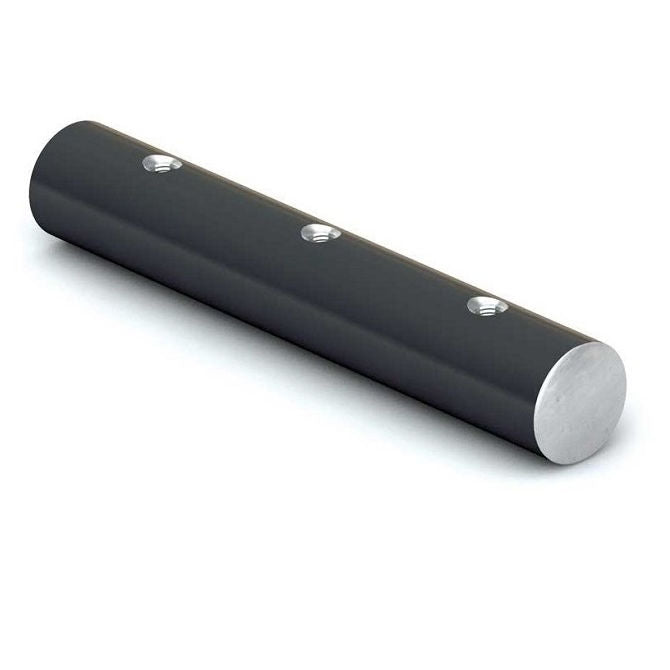

Shafting - Linear - Aluminium - Ceramic Coated - TappedTapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.
- Weld spatter, contaminants and paints will not stick.
- Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
- Shaft ends are not coated
Product Data

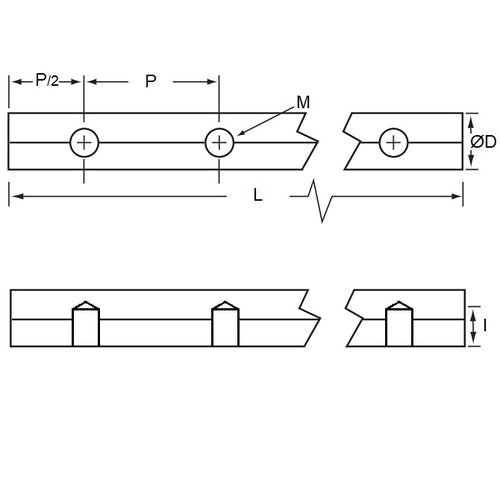

- Outside Diameter
:
38.100
mm
- 0.013 / - 0.040
(Equiv. 1.5 in.) - Length
228.6
mm
(Equiv. 9 in.) - Hole Spacing From End (A)
101.600
mm
(Equiv. 4 in.) - Hole Spacing (B) 203.2 mm
- Thread 3/8-16 UNC (9.53mm)
- Material Ceramic Coated Aluminium
Product Compliance and Data
Additional Resources
Cross References
- PBC1121
- PBC-1121
