CP-349K-349K-64-114-R-CG - Datasheet

MBA

Category Information

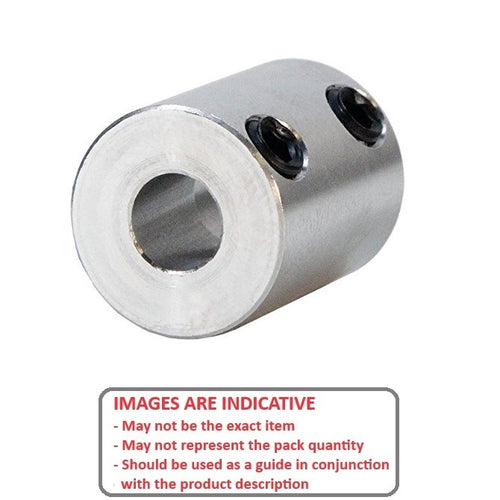

Couplings - Rigid - Set Screw

Set Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.

  • An expanded range may be available on special order. Please enquire.
  • Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
  • Quality Class Commercial: Bore Tolerance +0.051 / -0.000.

Product Data

  • Bore (b1) : 34.925 (Keyed 7.92mm Sq) mm
  • Bore (b2) 34.925 (Keyed 7.92mm Sq) mm
  • OD (D) 63.500 mm
  • Length (L) 114.300 mm
  • Bore Depth (B) Through Bore mm
  • Quality Class Commercial

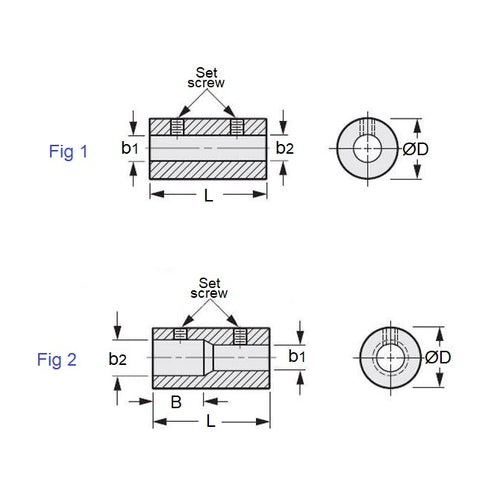

  • Figure Fig. 1
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® SC-1375
    • SC1375
