PBC-655RS - Datasheet
MBA
Category Information

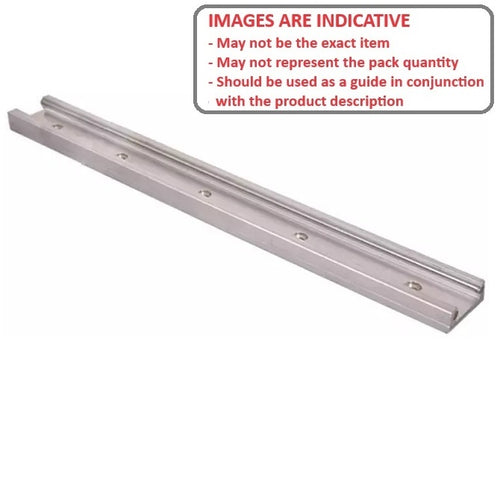

Linear - Redi-Rail RailRedi-Rail Rail Linear. Match carriage and rail by rail widh
- Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
- A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
- Rollers made from 52100 hardened steel, lubricated and sealed.
- Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

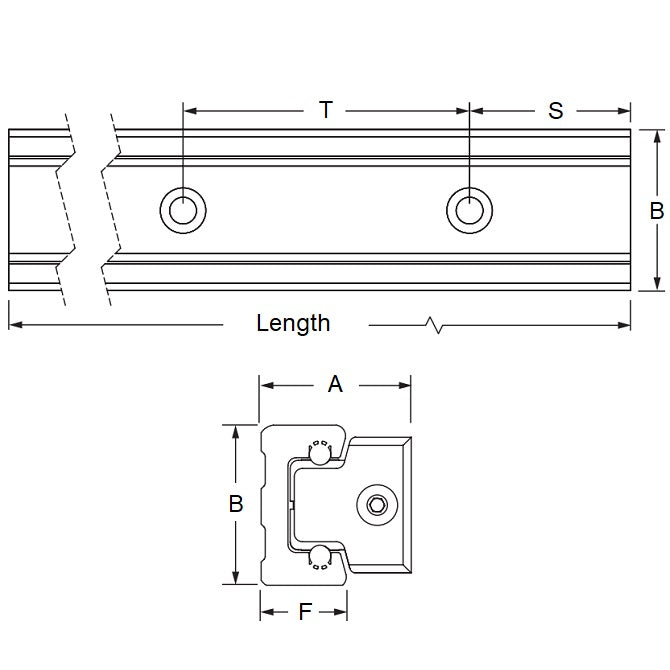

Product Data
- Width (B)
:
33.528
mm
(Equiv. 1.32 in.) - Length
609.6
mm
(Equiv. 24 in.) - Height (F)
15.240
mm
(Equiv. 0.6 in.) - Bolt Distance from End (S) 38.100 mm
- Bolt Spacing (T) 88.900 mm
- Bolt Size (X) No.10
- No. Of Holes 7.000
Product Compliance and Data
Additional Resources
Cross References
- Pacific RR14-24
- RR1424
