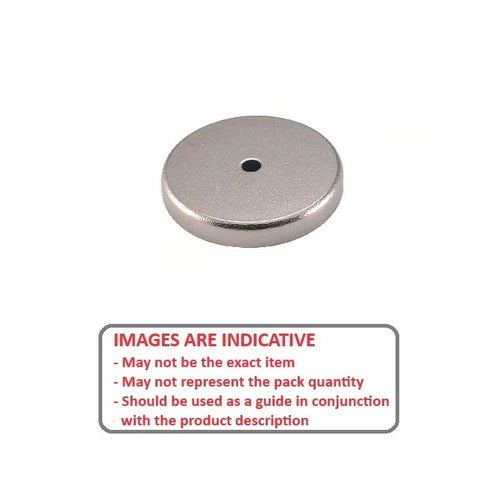

MAG-CP-032-05-06-H-A - Datasheet
MBA
Category Information
Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data

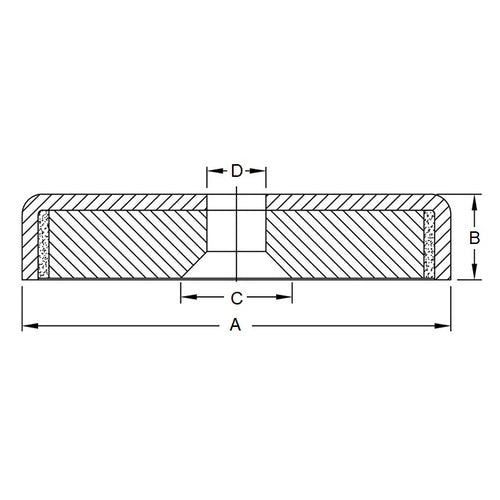

- Diameter (A)
:
31.50
mm
(Equiv. 1.24 in.) - Thickness (B)
4.76
mm
(Equiv. 0.187 in.) - Hole Recess (C)
6.35
mm
(Equiv. 0.25 in.) - Hole Top Diameter (D) 3.18 mm
- Holding Value 32 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM330
- IM-330
