PBC-705RS - Datasheet
MBA
Category Information

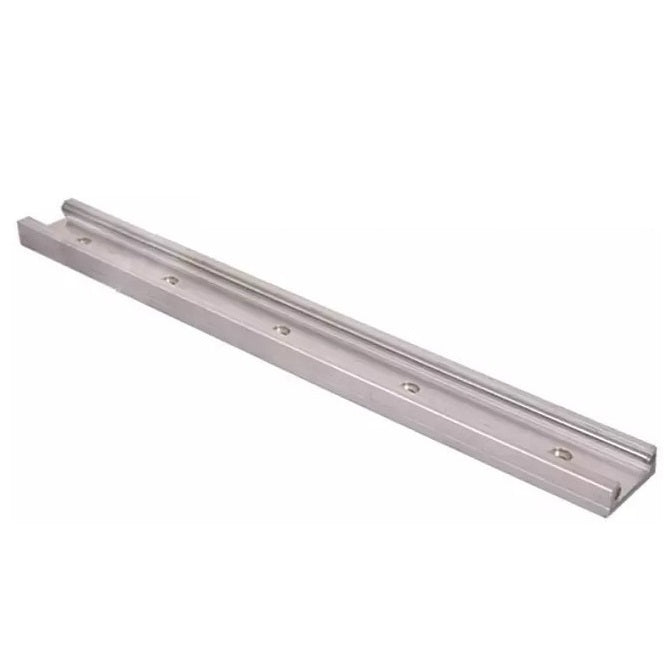

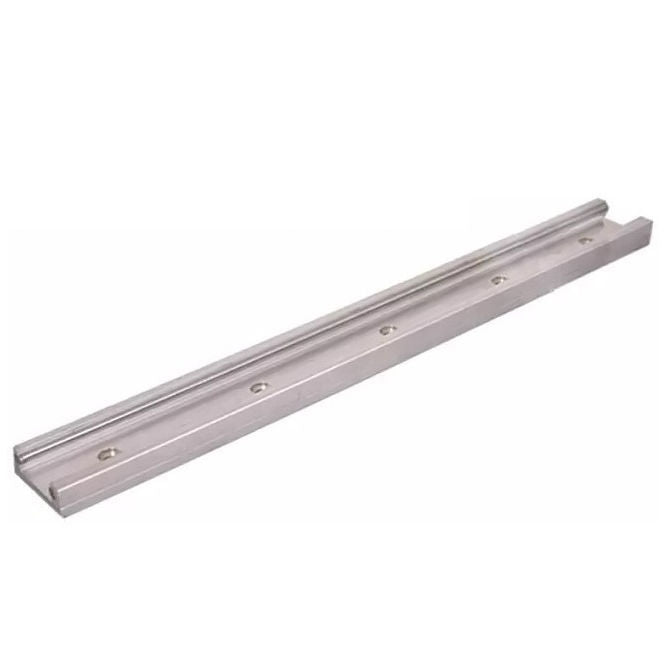

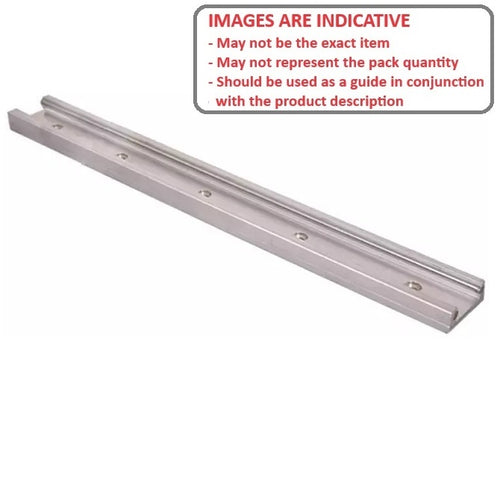

Linear - Redi-Rail RailRedi-Rail Rail Linear. Match carriage and rail by rail widh
- Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
- A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
- Rollers made from 52100 hardened steel, lubricated and sealed.
- Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

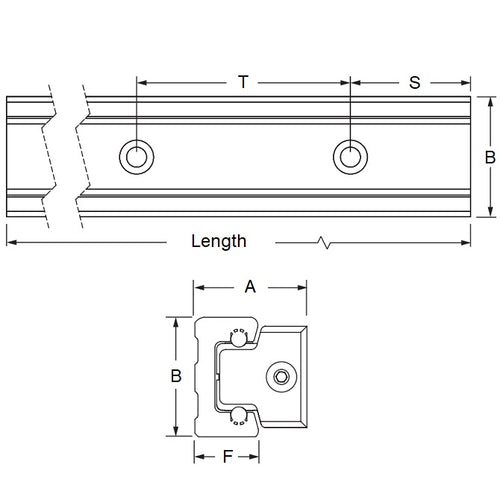

Product Data
- Width (B)
:
30.0
mm
(Equiv. 1.181 in.) - Length
720.0
mm
(Equiv. 28.346 in.) - Height (F)
16.000
mm
(Equiv. 0.63 in.) - Bolt Distance from End (S) 30.0 mm
- Bolt Spacing (T) 60.000 mm
- Bolt Size (X) M5 (5x0.8mm)
- No. Of Holes 12.000
Product Compliance and Data
Additional Resources
Cross References
- Pacific RR30-720
- RR30720
